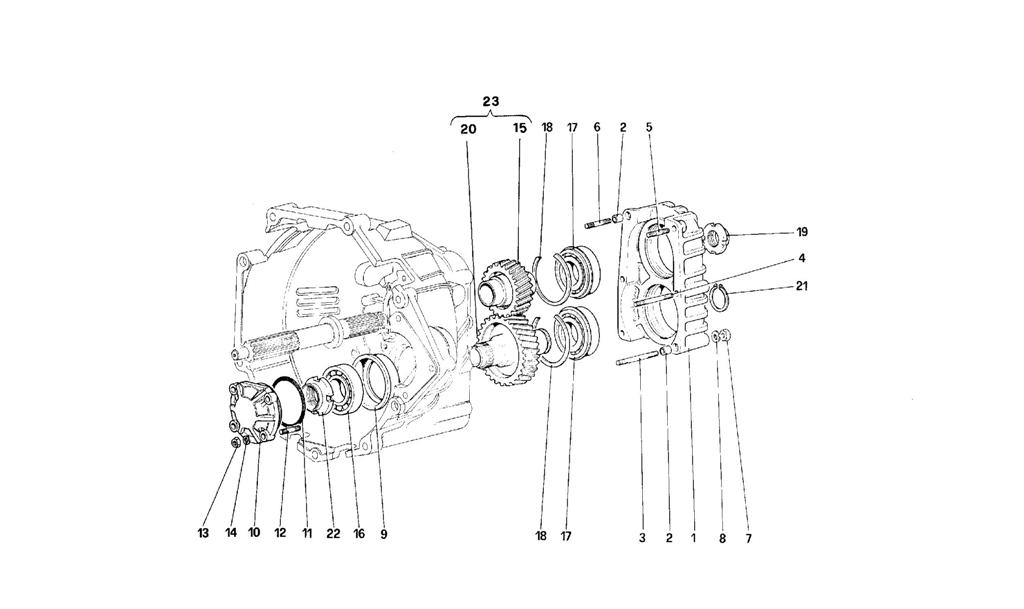

GEARBOX TRANSMISSION

Go to Split View

GEARBOX TRANSMISSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121716 *Qty: 1 Rear cover $562.97
Location: 2 Prev | Next Part: 102704 *Qty: 2 Dowel $19.74
Location: 3 Prev | Next Part: 13544321 *Qty: 1 Stud Superseded
Location: 4 Prev | Next Part: 13544224 *Qty: 3 Stud $11.77
Location: 5 Prev | Next Part: 13543424 *Qty: 1 Stud $0.90
Location: 6 Prev | Next Part: 13543721 *Qty: 1 Stud $0.90
Location: 7 Prev | Next Part: 16100821 *Qty: 6 Nut $3.57
Location: 8 Prev | Next Part: 12601379 *Qty: 6 Washer Superseded
Location: 9 Prev | Next Part: 121797 *Qty: 1 Bush for bearing $219.76
Location: 10 Prev | Next Part: 121750 *Qty: 1 Cover $222.37
Location: 11 Prev | Next Part: 121814 *Qty: 1 Sealing ring $10.53
Location: 12 Prev | Next Part: 13517121 *Qty: 4 Stud Call
Location: 13 Prev | Next Part: 16100821 *Qty: 4 Nut $3.57
Location: 14 Prev | Next Part: 12601379 *Qty: 4 Washer Superseded
Location: 15 Prev | Next Part: 121878 *Qty: 1 Driving gear -Not as spare part now -Replaced by part 23- $2,909.69
Location: 16 Prev | Next Part: 125499 *Qty: 1 Bearing Call
Location: 17 Prev | Next Part: 121820 *Qty: 2 Bearing $268.02
Location: 18 Prev | Next Part: 122112 *Qty: 2 Stop ring $3.34
Location: 19 Prev | Next Part: 125480 *Qty: 1 Ring nut $43.07
Location: 20 Prev | Next Part: 121878 *Qty: 1 Stop ring -Not as spare part now -Replaced by part 23- $2,909.69
Location: 21 Prev | Next Part: 11068376 *Qty: 1 Stop ring $0.90
Location: 22 Prev | Next Part: 153068 *Qty: 1 Ring nut $40.00
Location: 23 Prev | Next Part: 70000626 *Qty: 1 Transmission gears assembly $2,007.06

* Quantity shown indicates the number of pieces used in the diagram.
