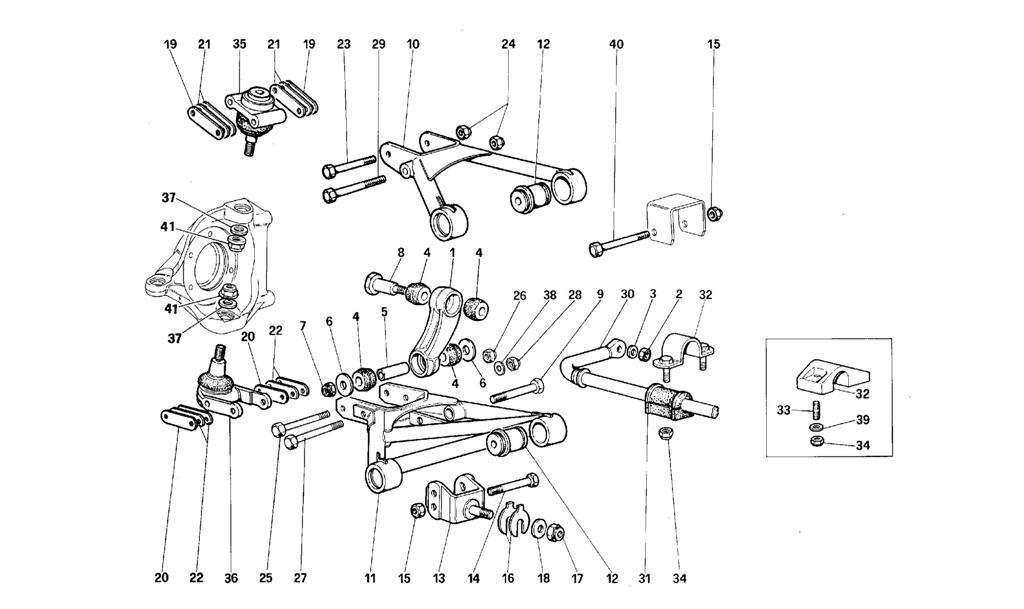

FRONT SUSPENSION - LEVERS

Go to Split View

FRONT SUSPENSION - LEVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 133602 *Qty: 2 Rod link $1,240.62
Location: 2 Prev | Next Part: 16103621 *Qty: 2 Nut $0.90
Location: 3 Prev | Next Part: 127498 *Qty: 2 Washer $0.90
Location: 4 Prev | Next Part: 100984 *Qty: 8 Grommet $15.95
Location: 5 Prev | Next Part: 100985 *Qty: 2 Spacer tube $27.55
Location: 6 Prev | Next Part: 117730 *Qty: 4 Washer $7.65
Location: 7 Prev | Next Part: 148020 *Qty: 2 Nut $5.53
Location: 8 Prev | Next Part: 121679 *Qty: 2 Pin $105.27
Location: 9 Prev | Next Part: 125396 *Qty: 2 Screw $66.06
Location: 10 Prev | Next Part: 121392 *Qty: 1 Upper lever, right $1,812.58
Location: 10 Prev | Next Part: 121393 *Qty: 1 Upper lever, left $1,812.58
Location: 11 Prev | Next Part: 132175 *Qty: 1 Lower lever, right $2,668.69
Location: 11 Prev | Next Part: 132176 *Qty: 1 Lower lever, left $2,670.19
Location: 12 Prev | Next Part: 154537 *Qty: 8 Flamblock Superseded
Location: 13 Prev | Next Part: 192281 *Qty: 4 Lower fork $128.20
Location: 14 Prev | Next Part: 128368 *Qty: 4 Screw $143.64
Location: 15 Prev | Next Part: 148020 *Qty: 8 Nut $5.53
Location: 16 Prev | Next Part: 140552 *Qty: 4 Shim for lower fork, thickness 6 mm. (Possible mounting) $3.85
Location: 16 Prev | Next Part: 101039 *Qty: 0 Ditto, thickness 1 mm. $2.00
Location: 16 Prev | Next Part: 107338 *Qty: 0 Ditto, thickness 1,5 mm. $2.00
Location: 16 Prev | Next Part: 107339 *Qty: 0 Ditto, thickness 2 mm. $2.00
Location: 16 Prev | Next Part: 107340 *Qty: 0 Ditto, thickness 2,5 mm $2.00
Location: 16 Prev | Next Part: 107341 *Qty: 0 Ditto, thickness 3 mm. $2.00
Location: 16 Prev | Next Part: 107342 *Qty: 0 Ditto, thickness 3,25 mm. $1.18
Location: 17 Prev | Next Part: 150238 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 19 Prev | Next Part: 115072 *Qty: 0 Upper adjusting plate for caster angle (Possible mounting) $28.40
Location: 20 Prev | Next Part: 124365 *Qty: 0 Lower adjusting plate for caster angle -Possible mounting $6.96
Location: 21 Prev | Next Part: 103256 *Qty: 8 Upper adjusting plate $4.69
Location: 22 Prev | Next Part: 125397 *Qty: 8 Lower adjusting plate $0.91
Location: 23 Prev | Next Part: 109013 *Qty: 2 Screw $64.42
Location: 24 Prev | Next Part: 12574521 *Qty: 4 Nut $0.90
Location: 25 Prev | Next Part: 15971621 *Qty: 2 Screw $0.90
Location: 26 Prev | Next Part: 12574521 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 112441 *Qty: 2 Screw $110.02
Location: 28 Prev | Next Part: 148020 *Qty: 2 Nut $5.53
Location: 29 Prev | Next Part: 114818 *Qty: 2 Screw $59.77
Location: 30 Prev | Next Part: 118118 *Qty: 1 Stabilizer rod $1,016.28
Location: 31 Prev | Next Part: 130606 *Qty: 2 Pad for rod $104.89
Location: 32 Prev | Next Part: 138389 *Qty: 2 Support -Valid after depletion of 133227 $86.45
Location: 33 Prev | Next Part: 13516821 *Qty: 4 Stud -Valid for support 130532 $1.08
Location: 34 Prev | Next Part: 14058511 *Qty: 4 Nut $0.90
Location: 35 Prev | Next Part: 116280 *Qty: 2 Upper ball joint $163.79
Location: 36 Prev | Next Part: 133944 *Qty: 2 Lower ball joint Call
Location: 37 Prev | Next Part: 122237 *Qty: 4 Washer $5.52
Location: 38 Prev | Next Part: 10520024 *Qty: 2 Washer $2.94
Location: 39 Prev | Next Part: 102683 *Qty: 4 Washer -Valid for support 130532 $13.65
Location: 40 Prev | Next Part: 121693 *Qty: 4 Screw $48.55
Location: 41 Prev | Next Part: 149807 *Qty: 4 Nut $1.39

* Quantity shown indicates the number of pieces used in the diagram.
