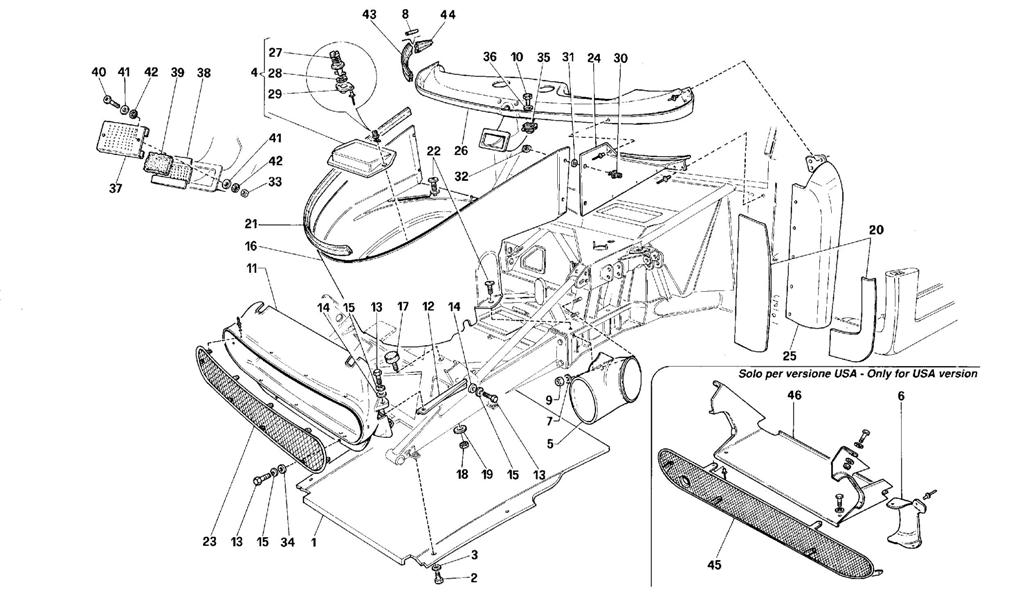

EXTERNAL ELEMENTS BODY - FRONT PART

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62383800 *Qty: 1 Floor -Not for USA Call
Location: 1 Prev | Next Part: 62901100 *Qty: 1 Floor -Valid for USA $6,827.38
Location: 2 Prev | Next Part: 60909500 *Qty: 11 Screw $2.73
Location: 3 Prev | Next Part: 12601474 *Qty: 11 Washer $0.90
Location: 4 Prev | Next Part: 62506900 *Qty: 1 Battery cover -1st type - l. mm 340 $815.91
Location: 4 Prev | Next Part: 62731800 *Qty: 1 Battery cover -2nd type - l. mm 435 $447.64
Location: 5 Prev | Next Part: 62610800 *Qty: 1 R.H. air duct -Valid from car 78623 Call
Location: 5 Prev | Next Part: 62610900 *Qty: 1 L.H. air duct -Valid from car 78623 $2,051.12
Location: 6 Prev | Next Part: 62900100 *Qty: 1 R.H. side conveyor -Valid for USA $255.41
Location: 6 Prev | Next Part: 62900200 *Qty: 1 L.H. side conveyor -Valid for USA $255.41
Location: 7 Prev | Next Part: 12637824 *Qty: 6 Washer $0.90
Location: 8 Prev | Next Part: 63394400 *Qty: 2 Tube Call
Location: 9 Prev | Next Part: 169180 *Qty: 4 Nut $0.90
Location: 10 Prev | Next Part: 10902387 *Qty: 1 Screw $1.08
Location: 11 Prev | Next Part: 62389300 *Qty: 1 Air central conveyor -Not for USA $3,996.02
Location: 12 Prev | Next Part: 62513200 *Qty: 1 R.H. bracket $29.46
Location: 12 Prev | Next Part: 62513300 *Qty: 1 L.H. bracket $41.53
Location: 13 Prev | Next Part: 10902211 *Qty: 6 Screw Call
Location: 14 Prev | Next Part: 12643721 *Qty: 4 Washer $1.14
Location: 15 Prev | Next Part: 11197773 *Qty: 6 Washer Superseded
Location: 16 Prev | Next Part: 62732800 *Qty: 1 Front holder -Valid for USA - For battery cover 62731800 $8,036.93
Location: 16 Prev | Next Part: 62506800 *Qty: 1 Front holder -Not for USA - For battery cover 62731800 $6,780.17
Location: 17 Prev | Next Part: 62302700 *Qty: 1 Plug $11.56
Location: 18 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 19 Prev | Next Part: 12640677 *Qty: 1 Washer Call
Location: 20 Prev | Next Part: 62845500 *Qty: 1 R.H. red protection Call
Location: 20 Prev | Next Part: 62845600 *Qty: 1 L.H. red protection $71.59
Location: 21 Prev | Next Part: 62493100 *Qty: 1 Gasket $40.02
Location: 22 Prev | Next Part: 14779611 *Qty: 6 Screw $4.26
Location: 23 Prev | Next Part: 62472400 *Qty: 1 Front central grille -Not for USA $402.34
Location: 24 Prev | Next Part: 62479500 *Qty: 1 LH. panel $747.99
Location: 24 Prev | Next Part: 62479400 *Qty: 1 R.H. panel $747.99
Location: 25 Prev | Next Part: 62389900 *Qty: 1 R.H. panel $766.22
Location: 25 Prev | Next Part: 62390000 *Qty: 1 L.H. panel $766.22
Location: 26 Prev | Next Part: 62385300 *Qty: 1 Under board Call
Location: 27 Prev | Next Part: 62513600 *Qty: 2 Pin $18.54
Location: 28 Prev | Next Part: 62468000 *Qty: 2 Stop ring $1.32
Location: 29 Prev | Next Part: 62467900 *Qty: 2 Clip $48.26
Location: 30 Prev | Next Part: 62468100 *Qty: 4 Pin $16.27
Location: 31 Prev | Next Part: 62468000 *Qty: 4 Stop ring $1.32
Location: 32 Prev | Next Part: 62467900 *Qty: 4 Clip $48.26
Location: 33 Prev | Next Part: 16101772 *Qty: 2 Nut $0.90
Location: 34 Prev | Next Part: 12647701 *Qty: 2 Washer $0.90
Location: 35 Prev | Next Part: 20037008 *Qty: 1 Spring $10.37
Location: 36 Prev | Next Part: 12643778 *Qty: 1 Washer $0.90
Location: 37 Prev | Next Part: 62561000 *Qty: 1 External shield Call
Location: 38 Prev | Next Part: 62561100 *Qty: 1 Internal shield $51.32
Location: 39 Prev | Next Part: 62572100 *Qty: 1 Plenum air filter Call
Location: 40 Prev | Next Part: 13270572 *Qty: 2 Screw $0.90
Location: 41 Prev | Next Part: 12639477 *Qty: 2 Washer $4.02
Location: 42 Prev | Next Part: 10615176 *Qty: 2 Washer $0.90
Location: 43 Prev | Next Part: 62494900 *Qty: 1 Gasket $65.72
Location: 44 Prev | Next Part: 62612500 *Qty: 1 R.H. terminal $19.74
Location: 44 Prev | Next Part: 62612600 *Qty: 1 L.H. terminal $19.15
Location: 45 Prev | Next Part: 62901200 *Qty: 1 Front central grille -Valid for USA Call
Location: 46 Prev | Next Part: 62900000 *Qty: 1 Air central conveyor -Valid for USA $1,213.12

* Quantity shown indicates the number of pieces used in the diagram.
