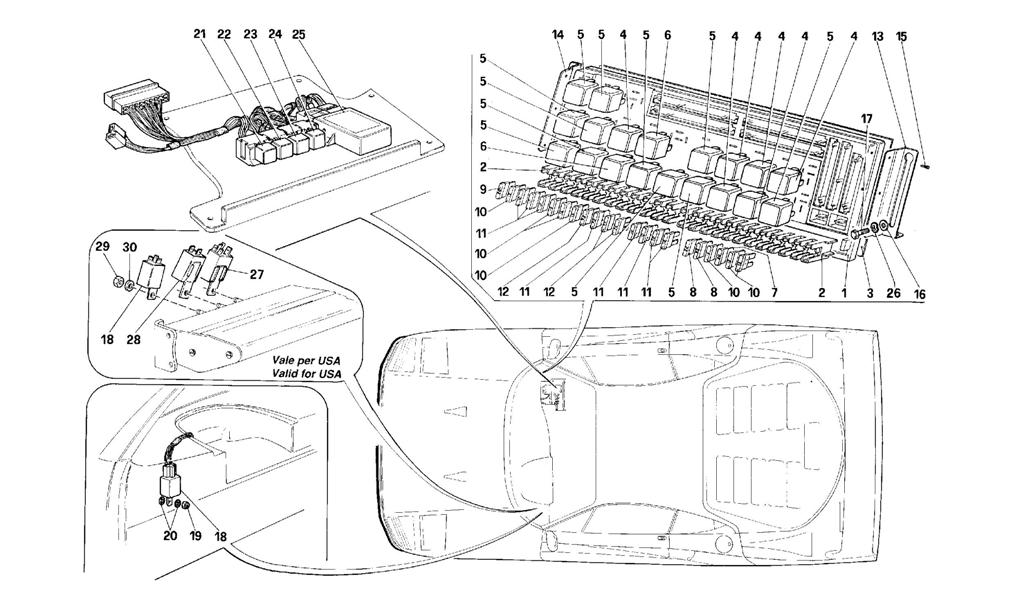

ELECTRICAL BOARD - FUSES - RELAYS

Go to Split View

ELECTRICAL BOARD - FUSES - RELAYS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 62425800 *Qty: 1 Electrical board complete Call
Location: 1 Prev | Next Part: 61675100 *Qty: 1 Plate -Not as spare parts- Call
Location: 2 Prev | Next Part: 61352100 *Qty: 2 Fuses box -Not as spare parts $85.91
Location: 3 Prev | Next Part: 116055 *Qty: 1 Cover Call
Location: 4 Prev | Next Part: 40130106 *Qty: 6 Relay BOSCH 0332204101 $26.82
Location: 5 Prev | Next Part: 40130007 *Qty: 11 Relay BOSCH 0332014113 $35.59
Location: 6 Prev | Next Part: 40283905 *Qty: 2 Relay BOSCH 0332015006 $23.86
Location: 7 Prev | Next Part: 131941 *Qty: 1 30 A fuse Call
Location: 8 Prev | Next Part: 126031 *Qty: 2 25 A fuse $0.90
Location: 9 Prev | Next Part: 125243 *Qty: 1 20 A fuse $0.90
Location: 10 Prev | Next Part: 125242 *Qty: 7 15 A fuse $0.90
Location: 11 Prev | Next Part: 125241 *Qty: 8 10 A fuse $0.90
Location: 12 Prev | Next Part: 125240 *Qty: 3 7,5 A fuse $0.90
Location: 13 Prev | Next Part: 61430900 *Qty: 1 R.H. bracket $16.62
Location: 14 Prev | Next Part: 61431000 *Qty: 1 L.H. bracket $16.62
Location: 15 Prev | Next Part: 15914607 *Qty: 6 Screw Call
Location: 16 Prev | Next Part: 12647601 *Qty: 2 Washer $0.90
Location: 17 Prev | Next Part: 10902024 *Qty: 2 Screw $0.90
Location: 18 Prev | Next Part: 61048000 *Qty: 1 Flasher for direction lights $64.90
Location: 19 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 20 Prev | Next Part: 10615471 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 40130007 *Qty: 1 Relay BOSCH 0332014113 $35.59
Location: 22 Prev | Next Part: 40130106 *Qty: 1 Relay BOSCH 0332204101 $26.82
Location: 23 Prev | Next Part: 40130007 *Qty: 1 Relay BOSCH 0332014113 $35.59
Location: 24 Prev | Next Part: 40130007 *Qty: 1 RelayBOSCH 0332014113 $35.59
Location: 25 Prev | Next Part: 61079400 *Qty: 1 A.C. system control unit Call
Location: 26 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 27 Prev | Next Part: 137667 *Qty: 1 Acoustic signal with relay -Valid for USA $82.43
Location: 28 Prev | Next Part: 137666 *Qty: 1 Signaling device for passive safety belts connection -Valid for USA $81.44
Location: 29 Prev | Next Part: 102948 *Qty: 3 Nut -Valid for USA- $0.90
Location: 30 Prev | Next Part: 10615471 *Qty: 3 Washer -Valid for USA- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
