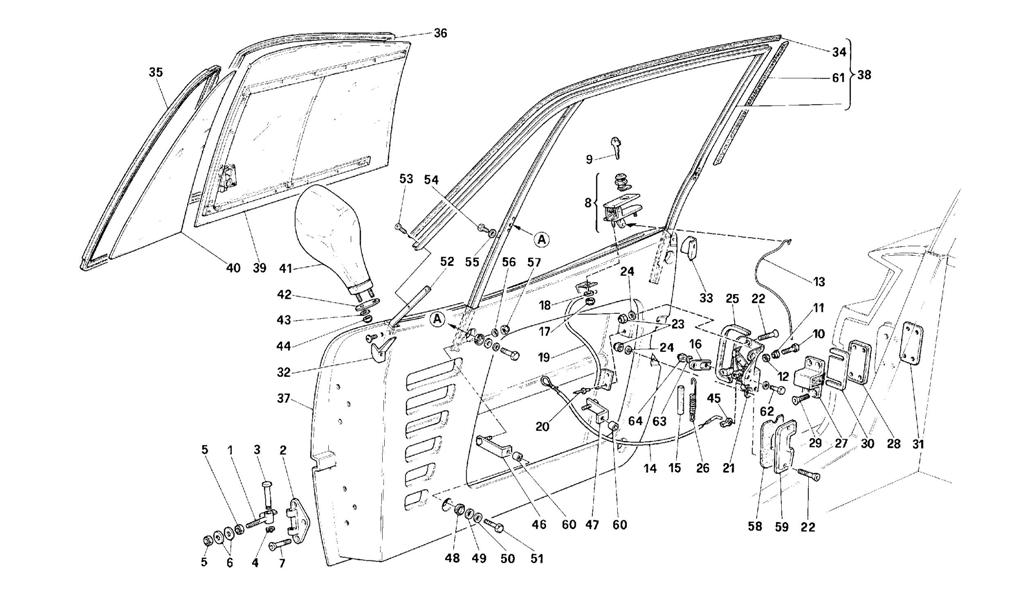

DOORS -SLIDING GLASS VERSION-

Go to Split View

DOORS -SLIDING GLASS VERSION-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 62461100 *Qty: 1 Set of lock -Not for USA Call
Location: - Prev | Next Part: 62760000 *Qty: 1 Set of lock -Valid for USA $5,027.20
Location: 1 Prev | Next Part: 62951300 *Qty: 4 Fixed hinge -Valid after depletion of 62537100 Call
Location: 2 Prev | Next Part: 62395000 *Qty: 4 Mobile hinge Call
Location: 3 Prev | Next Part: 62395100 *Qty: 4 Pin $29.69
Location: 4 Prev | Next Part: 11087676 *Qty: 4 Snap ring $0.90
Location: 5 Prev | Next Part: 133988 *Qty: 8 Nut M10 -Valid for 62537100 $0.90
Location: 5 Prev | Next Part: 10791321 *Qty: 8 Nut M14 -Valid for 62951300 $0.90
Location: 6 Prev | Next Part: 108051 *Qty: 8 Washer -Valid for 62537100 $2.46
Location: 6 Prev | Next Part: 112126 *Qty: 8 Washer -Valid for 62951300 $0.90
Location: 7 Prev | Next Part: 20298303 *Qty: 12 Screw $1.51
Location: 8 Prev | Next Part: _______ *Qty: 0 Call
Location: 9 Prev | Next Part: 95401161 *Qty: 2 Key blank $22.76
Location: 10 Prev | Next Part: 60088705 *Qty: 2 Screw $2.46
Location: 11 Prev | Next Part: 20089504 *Qty: 2 Bushing $0.90
Location: 12 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 13 Prev | Next Part: 62495200 *Qty: 2 Cable for handle $7.12
Location: 14 Prev | Next Part: 62460700 *Qty: 2 Cable for door handle -Request also clip no. 40063208 Call
Location: 15 Prev | Next Part: 62761400 *Qty: 2 Pipe Call
Location: 16 Prev | Next Part: 62452200 *Qty: 2 Lever $8.72
Location: 17 Prev | Next Part: 169180 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12638124 *Qty: 4 Washer $0.90
Location: 19 Prev | Next Part: 62498500 *Qty: 1 L.H. tube $41.35
Location: 19 Prev | Next Part: 62498400 *Qty: 1 R.H. tube Call
Location: 20 Prev | Next Part: 50209303 *Qty: 4 Rivet $1.49
Location: 21 Prev | Next Part: 20170809 *Qty: 1 R.H. lock Call
Location: 21 Prev | Next Part: 20170918 *Qty: 1 L.H. lock Call
Location: 22 Prev | Next Part: 20298303 *Qty: 8 Screw $1.51
Location: 23 Prev | Next Part: 102948 *Qty: 8 Nut $0.90
Location: 24 Prev | Next Part: 12643721 *Qty: 8 Washer $1.19
Location: 25 Prev | Next Part: 60566200 *Qty: 2 Gasket Call
Location: 26 Prev | Next Part: 60046000 *Qty: 2 Spring $3.86
Location: 27 Prev | Next Part: 20019105 *Qty: 1 R.H. lock striker $403.61
Location: 27 Prev | Next Part: 20019204 *Qty: 1 L.H. lock striker $395.92
Location: 28 Prev | Next Part: 60602400 *Qty: 2 Gasket $49.02
Location: 29 Prev | Next Part: 20287504 *Qty: 8 Screw $2.57
Location: 30 Prev | Next Part: 60163003 *Qty: 2 Spacer (Possible mounting) $9.30
Location: 31 Prev | Next Part: 60085206 *Qty: 2 Plate $163.71
Location: 32 Prev | Next Part: 62500600 *Qty: 1 R.H. front moulding Call
Location: 32 Prev | Next Part: 62500700 *Qty: 1 L.H. front moulding $30.18
Location: 33 Prev | Next Part: 62587200 *Qty: 1 R.H. rear moulding $36.18
Location: 33 Prev | Next Part: 62587300 *Qty: 1 L.H. rear moulding $34.90
Location: 34 Prev | Next Part: 60278504 *Qty: 2 Gasket Call
Location: 35 Prev | Next Part: 62489800 *Qty: 2 R.H. and L.H. front gasket $57.61
Location: 36 Prev | Next Part: 62587100 *Qty: 2 Gasket $104.29
Location: 37 Prev | Next Part: 62598800 *Qty: 1 R.H. door -Valid from car 77089 Call
Location: 37 Prev | Next Part: 62598900 *Qty: 1 L.H. door -Valid from car 77089 $8,543.64
Location: 38 Prev | Next Part: 62586600 *Qty: 1 R.H. glass frame -Valid from car 77089 $1,962.35
Location: 38 Prev | Next Part: 62588200 *Qty: 1 L.H. glass frame -Valid from car 77089 $1,292.80
Location: 38 Prev | Next Part: 70000546 *Qty: 1 R.H. glass frame -Valid till car 77088 $2,482.23
Location: 38 Prev | Next Part: 70000547 *Qty: 1 L.H. glass frame -Valid till car 77088 $2,482.23
Location: 39 Prev | Next Part: 62586900 *Qty: 1 R.H. side glass -Valid from car 77089 $4,785.00
Location: 39 Prev | Next Part: 62587000 *Qty: 1 L.H. side glass -Valid from car 77089 $3,300.00
Location: 39 Prev | Next Part: 70000542 *Qty: 1 R.H. side glass -Valid till car 77088 $7,680.61
Location: 39 Prev | Next Part: 70000543 *Qty: 1 L.H. side glass -Valid till car 77088 $3,107.30
Location: 40 Prev | Next Part: 62395800 *Qty: 1 R.H. front glass -Valid from car 77089 Call
Location: 40 Prev | Next Part: 62395900 *Qty: 1 L.H. front glass -Valid from car 77089 Call
Location: 40 Prev | Next Part: 70000544 *Qty: 1 R.H. front glass -Valid till car 77088 $655.11
Location: 40 Prev | Next Part: 70000545 *Qty: 1 L.H. front glass -Valid till car 77088 Call
Location: 41 Prev | Next Part: 62928300 *Qty: 1 R.H. mirror glass $27.91
Location: 41 Prev | Next Part: 62928400 *Qty: 1 L.H. mirror glass $27.85
Location: 41 Prev | Next Part: 62928500 *Qty: 2 Bi-adhesive for mirror $4.54
Location: 41 Prev | Next Part: 62470500 *Qty: 1 R.H. mirror $4,833.52
Location: 41 Prev | Next Part: 62470600 *Qty: 1 L.H. mirror $4,833.52
Location: 42 Prev | Next Part: 70000548 *Qty: 2 L.H. and R.H. gasket $23.27
Location: 43 Prev | Next Part: 12646724 *Qty: 4 Washer $0.90
Location: 44 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 45 Prev | Next Part: 40063208 *Qty: 2 Spring Call
Location: 46 Prev | Next Part: 62587400 *Qty: 2 Front bracket Call
Location: 47 Prev | Next Part: 62587500 *Qty: 2 Rear bracket $21.58
Location: 48 Prev | Next Part: 60657600 *Qty: 8 Washer $2.09
Location: 49 Prev | Next Part: 12643721 *Qty: 8 Washer $1.19
Location: 50 Prev | Next Part: 127494 *Qty: 8 Washer $0.90
Location: 51 Prev | Next Part: 10902124 *Qty: 8 Screw $0.90
Location: 51 Prev | Next Part: 10902324 *Qty: 4 Screw -For spacer 60- (Possible mounting) Superseded
Location: 52 Prev | Next Part: 62394400 *Qty: 1 Front support R.H. frame $40.02
Location: 52 Prev | Next Part: 62394500 *Qty: 1 Front support L.H. frame $124.86
Location: 53 Prev | Next Part: 20286704 *Qty: 4 Screw $1.73
Location: 54 Prev | Next Part: 10902124 *Qty: 2 Screw $0.90
Location: 55 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 56 Prev | Next Part: 12643721 *Qty: 4 Washer $1.19
Location: 57 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 58 Prev | Next Part: 62762200 *Qty: 1 L.H. moulding gasket $1.65
Location: 58 Prev | Next Part: 62762300 *Qty: 1 R.H. moulding gasket $1.65
Location: 59 Prev | Next Part: 62762000 *Qty: 1 L.H. lock moulding $158.66
Location: 59 Prev | Next Part: 62762100 *Qty: 1 R.H. lock moulding $158.66
Location: 60 Prev | Next Part: 62453800 *Qty: 4 Spacer (Possible mounting) $34.83
Location: 61 Prev | Next Part: 60278405 *Qty: 2 Rear gasket $101.40
Location: 62 Prev | Next Part: 10902124 *Qty: 2 Screw $0.90
Location: 63 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 64 Prev | Next Part: 102741 *Qty: 2 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
