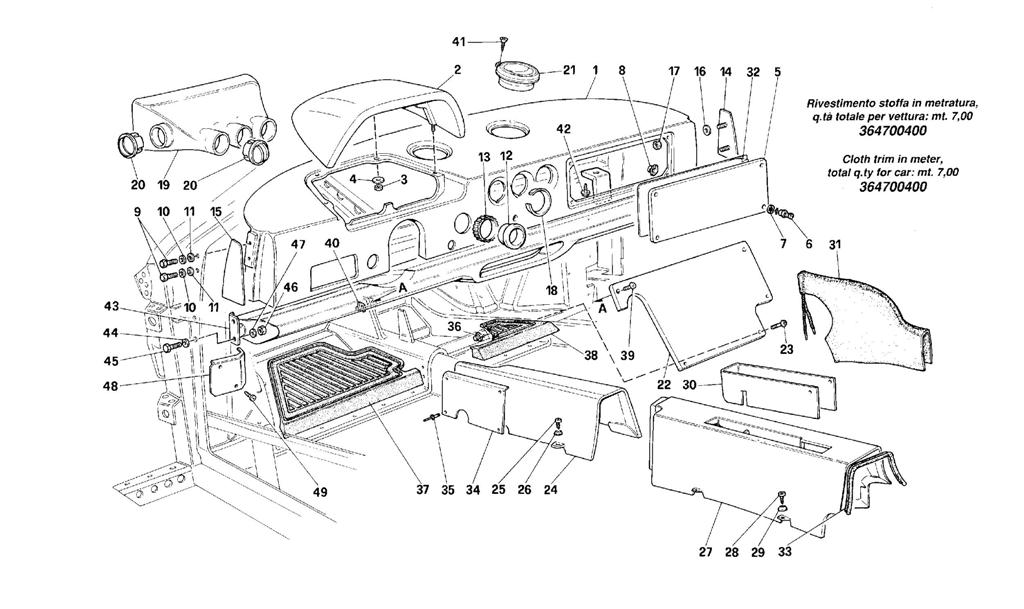

DASHBOARD AND TUNNEL

Go to Split View

DASHBOARD AND TUNNEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62743100 *Qty: 1 Panel with covering -Valid for USA with A.C. $3,091.14
Location: 1 Prev | Next Part: 62565400 *Qty: 1 Panel with covering -Not for USA with A.C. Call
Location: 1 Prev | Next Part: 62502500 *Qty: 1 Covering $1,072.11
Location: 2 Prev | Next Part: 62641000 *Qty: 1 Covering $110.65
Location: 2 Prev | Next Part: 62590000 *Qty: 1 Dash board Call
Location: 3 Prev | Next Part: 10721911 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 12642801 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 62565500 *Qty: 1 Lid with covering $988.04
Location: 5 Prev | Next Part: 62503000 *Qty: 1 Covering $35.44
Location: 6 Prev | Next Part: 62547200 *Qty: 4 Pin (62468200 alternatives) $10.03
Location: 6 Prev | Next Part: 62468200 *Qty: 4 Pin $19.12
Location: 7 Prev | Next Part: 62468000 *Qty: 4 Stop ring $1.36
Location: 8 Prev | Next Part: 62467900 *Qty: 4 Pin clip $48.26
Location: 9 Prev | Next Part: 10902387 *Qty: 4 Screw $0.90
Location: 10 Prev | Next Part: 12640677 *Qty: 4 Washer Call
Location: 11 Prev | Next Part: 12643778 *Qty: 4 Washer $0.90
Location: 12 Prev | Next Part: 62451600 *Qty: 1 Ring nut $7.69
Location: 13 Prev | Next Part: 62451700 *Qty: 1 Ring $2.70
Location: 14 Prev | Next Part: 62590100 *Qty: 1 R.H. moulding with covering $85.45
Location: 15 Prev | Next Part: 62590200 *Qty: 1 L.H. moulding with covering $88.02
Location: 16 Prev | Next Part: 12624101 *Qty: 4 Washer $0.90
Location: 17 Prev | Next Part: 10794011 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 70000562 *Qty: 3 Moulding with covering Call
Location: 19 Prev | Next Part: 62420200 *Qty: 1 Conveyor $3,050.86
Location: 20 Prev | Next Part: 60656500 *Qty: 4 Air outlet Call
Location: 21 Prev | Next Part: 62509800 *Qty: 2 Air outlet Call
Location: 22 Prev | Next Part: 62385200 *Qty: 1 Plate $3,530.74
Location: 23 Prev | Next Part: 13274672 *Qty: 2 Screw $0.93
Location: 24 Prev | Next Part: 62553500 *Qty: 1 Front tunnel with covering Call
Location: 24 Prev | Next Part: 62497400 *Qty: 1 Covering $323.10
Location: 25 Prev | Next Part: 15908878 *Qty: 2 Screw $0.90
Location: 26 Prev | Next Part: 12611607 *Qty: 2 Washer $4.67
Location: 27 Prev | Next Part: 62730600 *Qty: 1 Rear tunnel with covering -Valid for USA $2,691.42
Location: 27 Prev | Next Part: 62540100 *Qty: 1 Covering $10.21
Location: 27 Prev | Next Part: 62553400 *Qty: 1 Rear tunnel with covering -Not for USA Call
Location: 27 Prev | Next Part: 62497300 *Qty: 1 Covering $840.99
Location: 28 Prev | Next Part: 15908478 *Qty: 4 Screw Call
Location: 29 Prev | Next Part: 12611607 *Qty: 4 Washer $4.67
Location: 30 Prev | Next Part: 62540200 *Qty: 1 Covering $19.13
Location: 30 Prev | Next Part: 62568500 *Qty: 1 Moulding with covering $452.59
Location: 31 Prev | Next Part: 62526900 *Qty: 1 Boot $189.10
Location: 32 Prev | Next Part: 62426000 *Qty: 1 Relays plate -For control unit 62425800 $65.83
Location: 33 Prev | Next Part: 62568600 *Qty: 1 Rear sealing cord $58.60
Location: 34 Prev | Next Part: 62566700 *Qty: 1 Shield $63.73
Location: 35 Prev | Next Part: 61741600 *Qty: 4 Rivet $0.90
Location: 36 Prev | Next Part: 62471100 *Qty: 2 Clip $17.62
Location: 37 Prev | Next Part: 62549900 *Qty: 1 Carpet $629.28
Location: 38 Prev | Next Part: 62576400 *Qty: 1 Carpet $411.26
Location: 39 Prev | Next Part: 13276611 *Qty: 3 Screw $0.90
Location: 40 Prev | Next Part: 62471200 *Qty: 3 Ball to fix. lifting system $13.94
Location: 41 Prev | Next Part: 15692178 *Qty: 6 Screw $0.90
Location: 42 Prev | Next Part: 15925901 *Qty: 2 Screw Call
Location: 43 Prev | Next Part: 62759000 *Qty: 1 Knee-guard with covering -Valid for USA $3,813.72
Location: 43 Prev | Next Part: 62759100 *Qty: 1 Covering Call
Location: 44 Prev | Next Part: 12639721 *Qty: 4 Washer $0.90
Location: 45 Prev | Next Part: 10902624 *Qty: 4 Screw $0.90
Location: 46 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 47 Prev | Next Part: 12640677 *Qty: 4 Washer Call
Location: 48 Prev | Next Part: 62758400 *Qty: 1 R.H. electrical board cover -Valid for USA $177.54
Location: 48 Prev | Next Part: 62760800 *Qty: 1 L.H. electrical board cover -Valid for USA $172.37
Location: 49 Prev | Next Part: 13273916 *Qty: 4 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
