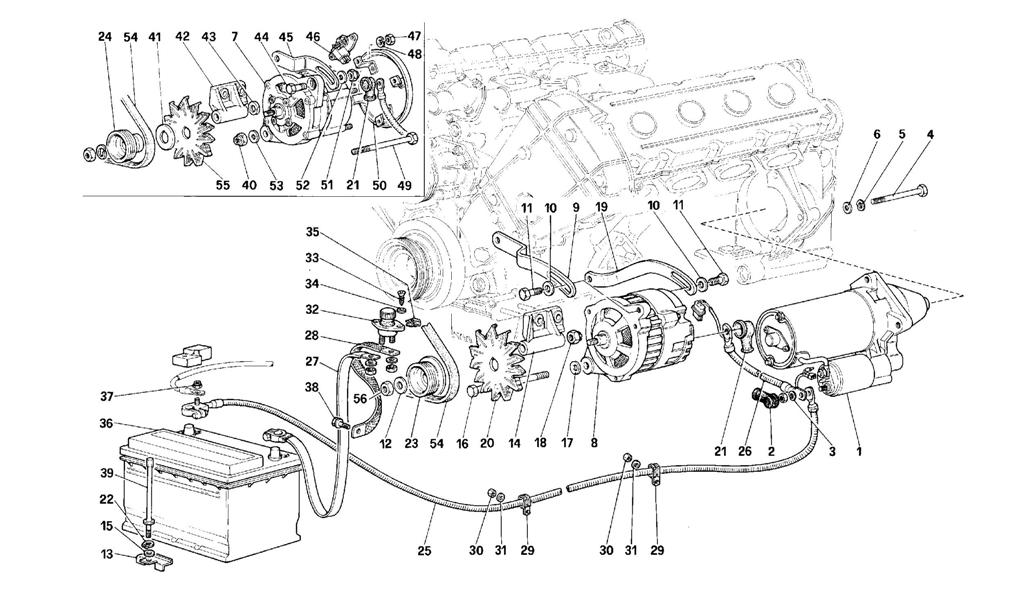

CURRENT GENERATION

Go to Split View

CURRENT GENERATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120967 *Qty: 1 Starting motor $2,022.79
Location: 2 Prev | Next Part: 124683 *Qty: 1 Cap $0.90
Location: 3 Prev | Next Part: 102683 *Qty: 1 Washer $14.08
Location: 4 Prev | Next Part: 16044431 *Qty: 3 Screw $0.90
Location: 5 Prev | Next Part: 11198074 *Qty: 3 Washer $0.90
Location: 6 Prev | Next Part: 10519621 *Qty: 3 Washer $0.90
Location: 7 Prev | Next Part: 130619 *Qty: 1 Generator 70 A -Valid till engine Nr. 16963 -With fan and nut $1,294.24
Location: 8 Prev | Next Part: 170192 *Qty: 1 Generator 105 A -Valid from engine Nr. 16964 -With fan and nut Call
Location: 9 Prev | Next Part: 136744 *Qty: 1 Adjustment bracket -Valid for generator 139421 $92.55
Location: 10 Prev | Next Part: 11198179 *Qty: 2 Washer -Valid for generator 139421 $0.90
Location: 11 Prev | Next Part: 16043621 *Qty: 2 Screw -Valid for generator 139421 $0.90
Location: 12 Prev | Next Part: 142076 *Qty: 1 Spacer -Valid for generator 139421 $6.50
Location: 13 Prev | Next Part: 106525 *Qty: 1 Bracket $67.00
Location: 14 Prev | Next Part: 136738 *Qty: 1 Generator support -Valid for generator 139421 $385.15
Location: 15 Prev | Next Part: 12644424 *Qty: 1 Washer $0.90
Location: 16 Prev | Next Part: 111509 *Qty: 1 Screw -Valid for generator 139421 $14.95
Location: 17 Prev | Next Part: 12642501 *Qty: 1 Washer -Valid for generator 139421 Call
Location: 18 Prev | Next Part: 13598011 *Qty: 1 Nut -Valid for generator 139421 Call
Location: 19 Prev | Next Part: 139852 *Qty: 1 Adjustment bracket -Valid for generator 139421 $239.26
Location: 20 Prev | Next Part: 143863 *Qty: 1 Fan -Valid for generator 139421 $20.41
Location: 21 Prev | Next Part: 124683 *Qty: 1 Cap $0.90
Location: 22 Prev | Next Part: 11065474 *Qty: 1 Ring $0.90
Location: 23 Prev | Next Part: 142083 *Qty: 1 Pulley -Valid for generator 139421 $817.94
Location: 24 Prev | Next Part: 133312 *Qty: 1 Pulley -Valid for generator 130619 $103.98
Location: 25 Prev | Next Part: 62425600 *Qty: 1 Cable from battery to starting motor -Valid for generator 130619 $122.89
Location: 25 Prev | Next Part: 62632100 *Qty: 1 Cable from battery to starting motor -Valid for generator 139421 $140.75
Location: 26 Prev | Next Part: 62468600 *Qty: 1 Connecting cable starting motor and generator -Valid for generator 130619 $111.65
Location: 26 Prev | Next Part: 62632000 *Qty: 1 Connecting cable starting motor and generator -Valid for generator 139421 $70.38
Location: 27 Prev | Next Part: 62425700 *Qty: 1 Cable from battery to switch $104.87
Location: 28 Prev | Next Part: 62497700 *Qty: 1 Cable $105.71
Location: 29 Prev | Next Part: 10441590 *Qty: 2 Clamp $0.90
Location: 29 Prev | Next Part: 10441790 *Qty: 2 Clamp -For cars with lifting system $0.97
Location: 30 Prev | Next Part: 134041 *Qty: 2 Nut $0.90
Location: 31 Prev | Next Part: 11197770 *Qty: 2 Washer Superseded
Location: 32 Prev | Next Part: 139607 *Qty: 1 Switch Call
Location: 33 Prev | Next Part: 15688208 *Qty: 2 Screw $1.10
Location: 34 Prev | Next Part: 12637806 *Qty: 2 Washer $0.90
Location: 35 Prev | Next Part: 61067800 *Qty: 2 Spring $0.90
Location: 36 Prev | Next Part: 190252 *Qty: 1 Battery 12V 60Ah. 300A. $623.94
Location: 37 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 38 Prev | Next Part: 16296421 *Qty: 1 Screw $42.71
Location: 39 Prev | Next Part: 62451800 *Qty: 1 Rod $113.11
Location: 40 Prev | Next Part: 16109221 *Qty: 1 Nut -Valid for generator 130619 $1.26
Location: 41 Prev | Next Part: 106543 *Qty: 1 Spacer -Valid for generator 130619 $1.70
Location: 42 Prev | Next Part: 105158 *Qty: 1 Generator support -Valid for generator 130619 $1,261.97
Location: 43 Prev | Next Part: 106426 *Qty: 1 Washer -Valid for generator 130619 $3.13
Location: 44 Prev | Next Part: 15970931 *Qty: 1 Screw -Valid for generator 130619 Call
Location: 45 Prev | Next Part: 122294 *Qty: 1 Adjustment bracket -Valid for generator 130619 $18.21
Location: 46 Prev | Next Part: 121840 *Qty: 1 Regulator -Valid for generator 130619 $208.37
Location: 47 Prev | Next Part: 15896470 *Qty: 4 Nut -Valid for generator 130619 $0.90
Location: 48 Prev | Next Part: 127493 *Qty: 4 Washer -Valid for generator 130619 Superseded
Location: 49 Prev | Next Part: 105390 *Qty: 1 Screw -Valid for generator 130619 $4.21
Location: 50 Prev | Next Part: 107221 *Qty: 1 Shield -Valid for generator 130619 Call
Location: 51 Prev | Next Part: 13598021 *Qty: 1 Nut -Valid for generator 130619 $4.65
Location: 52 Prev | Next Part: 105391 *Qty: 1 Washer -Valid for generator 130619 $3.15
Location: 53 Prev | Next Part: 11198679 *Qty: 1 Washer -Valid for generator 130619 $1.00
Location: 54 Prev | Next Part: 199821 *Qty: 1 Generator control pulley and water pump $34.78
Location: 55 Prev | Next Part: 143548 *Qty: 1 Fan -Valid for generator 130619 $26.11
Location: 56 Prev | Next Part: 152687 *Qty: 1 Nut $75.12

* Quantity shown indicates the number of pieces used in the diagram.
