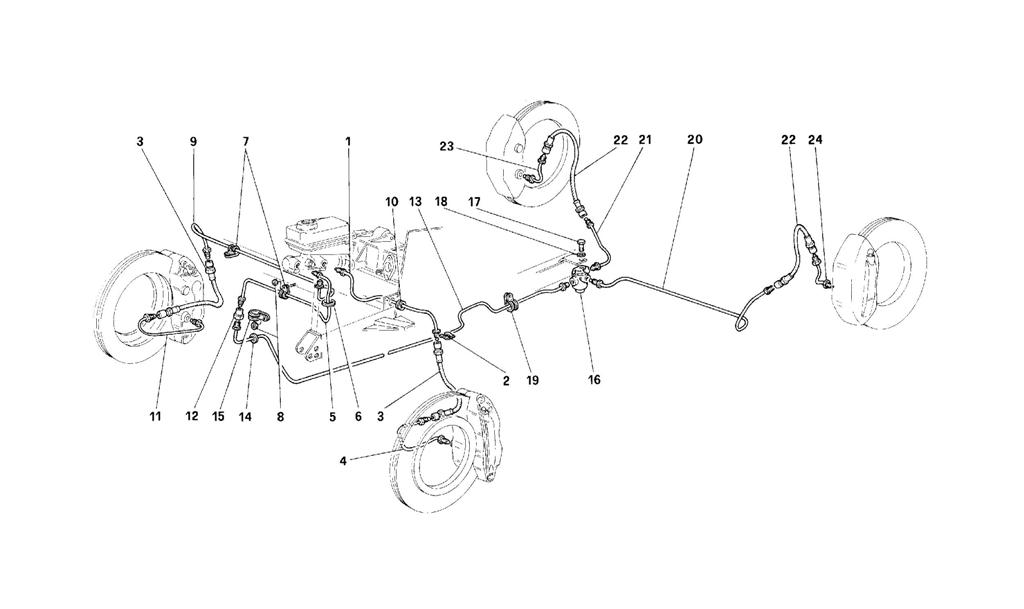

BRAKE SYSTEM -VALID FOR USA

Go to Split View

BRAKE SYSTEM -VALID FOR USA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 137734 *Qty: 1 Brake pipe from pump to L.H. front flexible pipe $8.60
Location: 2 Prev | Next Part: 116374 *Qty: 4 Spring $2.96
Location: 3 Prev | Next Part: 116373 *Qty: 2 Front brake flexible pipe Superseded
Location: 4 Prev | Next Part: 137736 *Qty: 1 Pipe to L.H. front caliper $24.69
Location: 5 Prev | Next Part: 137737 *Qty: 1 Brake pipe from pump to union Call
Location: 6 Prev | Next Part: 10396880 *Qty: 1 Fairlead ring $2.62
Location: 7 Prev | Next Part: 10440890 *Qty: 2 Bracket $0.90
Location: 8 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 9 Prev | Next Part: 137731 *Qty: 1 Brake pipe from pump to R.H. front flexible pipe $9.66
Location: 10 Prev | Next Part: 10396180 *Qty: 2 Fairlead ring $1.29
Location: 11 Prev | Next Part: 137733 *Qty: 1 Pipe to R.H. front caliper Call
Location: 12 Prev | Next Part: 127505 *Qty: 1 Union $10.96
Location: 13 Prev | Next Part: 137738 *Qty: 1 Brake pipe from union to braking corrector $15.78
Location: 14 Prev | Next Part: 10396980 *Qty: 3 Fairlead ring $1.64
Location: 15 Prev | Next Part: 10441590 *Qty: 1 Bracket $0.90
Location: 16 Prev | Next Part: 110833 *Qty: 1 Braking corrector $630.96
Location: 17 Prev | Next Part: 16043021 *Qty: 1 Screw $0.90
Location: 18 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 19 Prev | Next Part: 10441590 *Qty: 2 Bracket $0.90
Location: 20 Prev | Next Part: 137742 *Qty: 1 Brake pipe from corrector to L.H. rear flexible $13.21
Location: 21 Prev | Next Part: 137739 *Qty: 1 Brake pipe from corrector to R.H. rear flexible $13.57
Location: 22 Prev | Next Part: 116373 *Qty: 2 Rear flexible brake pipe Superseded
Location: 23 Prev | Next Part: 137741 *Qty: 1 Pipe to R.H. rear caliper $19.75
Location: 24 Prev | Next Part: 137744 *Qty: 1 Pipe to L.H. rear caliper Call

* Quantity shown indicates the number of pieces used in the diagram.
