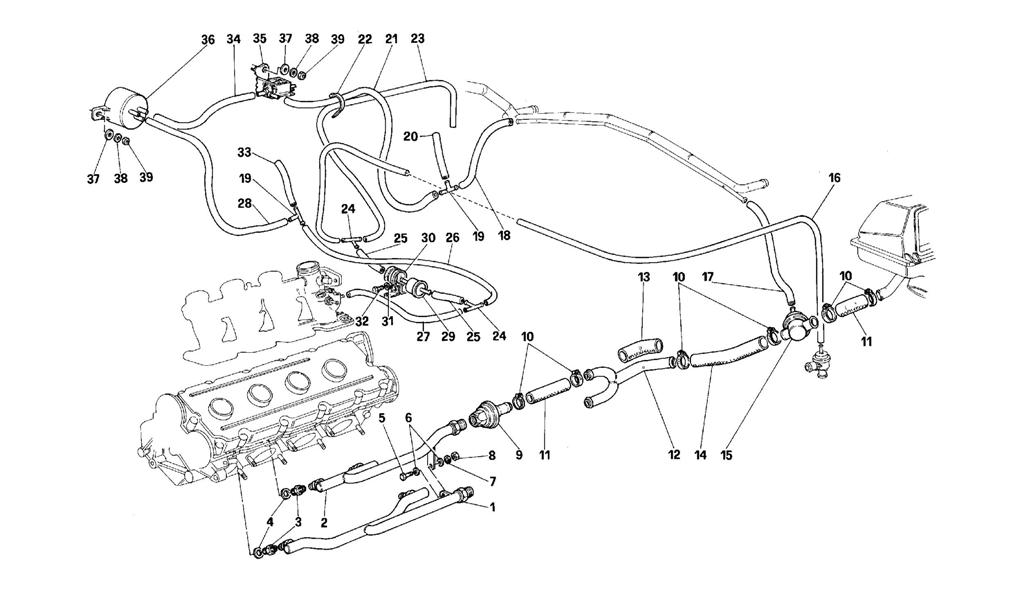

AIR INJECTION DEVICE -VALID FOR CARS WITH CATALYST - NOT FOR USA--

AIR INJECTION DEVICE -VALID FOR CARS WITH CATALYST - NOT FOR USA--

Location Part # Quantity* Description Price Add To Cart
1 142191 1 Lower air pipe R.H. head $529.83
1 142193 1 Lower air pipe L.H. head $504.60
2 142194 1 Upper air pipe L.H. head $746.16
2 142192 1 Upper air pipe R.H. head $691.64
3 121718 8 Union $55.42
4 10257060 8 Gasket $0.90
5 10902221 2 Screw Unavailable
6 12644424 4 Washer $0.90
7 106850 2 Washer Superseded
8 15896214 2 Nut Unavailable
9 148494 4 Check valve $75.00
10 13000490 16 Clamp Superseded
11 144320 6 Sleeve $58.08
12 133973 1 R.H. union $58.63
12 133974 1 L.H. union $64.05
13 147744 2 Hose Unavailable
14 144321 2 Sleeve $110.91
15 147390 2 Cut-off valve Unavailable
16 148200 1 Rubber pipe from 3-ways to L.H. air valve $113.25
17 148204 1 Rubber pipe from L.H. cut-off $21.92
18 147125 1 Rubber pipe from 3-ways $26.71
19 146972 2 3-ways union $275.35
20 148205 1 Rubber pipe from 3-ways to R.H. cut-off $12.23
21 147124 1 Rubber pipe from solenoid valve Unavailable
22 14560287 1 Clamp Superseded
23 147126 1 Rubber pipe from 3-ways to R.H. air valve $104.73
24 137301 2 3-ways union $13.93
25 147118 2 Rubber pipe from silencer to 3-ways $14.80
26 147120 1 Rubber pipe from 3-ways to 3-ways $39.77
27 147119 1 Rubber pipe from L.H. intake manifold to 3-ways $14.78
28 147122 1 Rubber pipe from 3-ways to tank $35.73
29 129085 1 Silencer $127.64
30 138308 1 Silencer bracket $9.76
31 12601174 1 Washer $0.90
32 10978221 1 Screw $1.97
33 147121 1 Rubber pipe from R.H. intake manifold to 3-ways $7.75
34 148203 1 Rubber pipe from tank to solenoid valve $29.54
35 111704 1 Solenoid valve $277.14
36 140175 1 Depression tank Unavailable
37 12643724 1 Washer Superseded
38 127494 1 Washer $0.90
39 15896214 1 Nut Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
