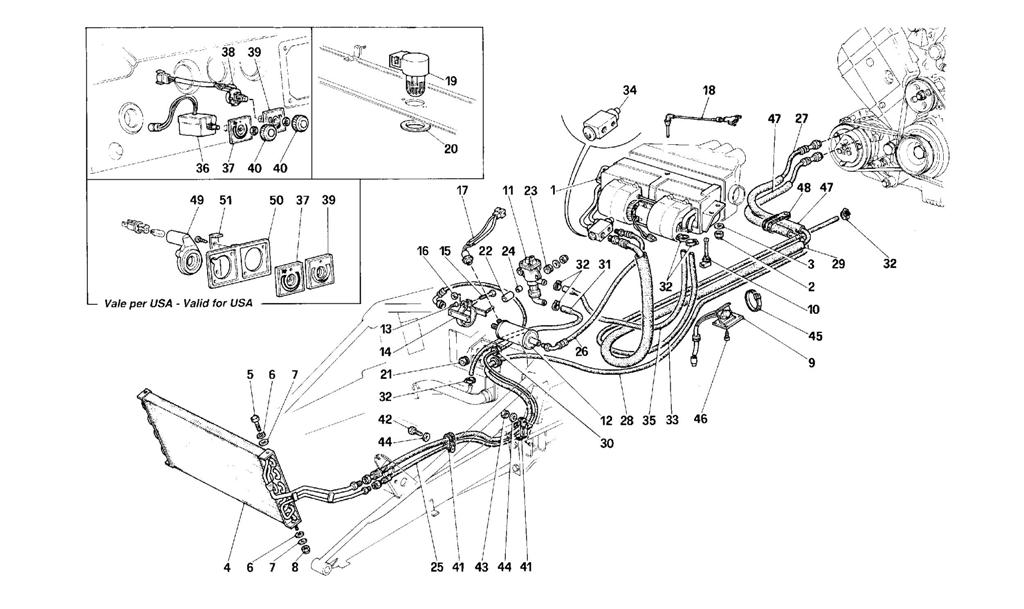

AIR-CONDITIONING SYSTEM

Go to Split View

AIR-CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62574000 *Qty: 1 Evaporator unit assy Call
Location: 2 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 12643721 *Qty: 4 Washer $1.14
Location: 4 Prev | Next Part: 62420100 *Qty: 1 Condenser $958.48
Location: 5 Prev | Next Part: 10902221 *Qty: 2 Screw $1.27
Location: 6 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 7 Prev | Next Part: 12643724 *Qty: 4 Washer $0.90
Location: 8 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 9 Prev | Next Part: 126856 *Qty: 1 Transistor Call
Location: 10 Prev | Next Part: 61079600 *Qty: 1 Sensor Call
Location: 11 Prev | Next Part: 61079000 *Qty: 1 Valve $512.88
Location: 12 Prev | Next Part: 62432700 *Qty: 1 Dryer filter Call
Location: 13 Prev | Next Part: 14441137 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 62462800 *Qty: 1 Bracket $280.02
Location: 15 Prev | Next Part: 10978711 *Qty: 1 Screw $0.90
Location: 16 Prev | Next Part: 14078000 *Qty: 1 Nut $0.90
Location: 17 Prev | Next Part: 62433300 *Qty: 1 Pressostat for filter $177.46
Location: 18 Prev | Next Part: 62341000 *Qty: 1 Sensor Call
Location: 19 Prev | Next Part: 62437000 *Qty: 1 Sensor $22.42
Location: 20 Prev | Next Part: 62495500 *Qty: 1 Bushing $5.94
Location: 21 Prev | Next Part: 10398480 *Qty: 1 Ring $2.16
Location: 22 Prev | Next Part: 62508300 *Qty: 2 Spacer $13.97
Location: 23 Prev | Next Part: 103549 *Qty: 2 Ring $1.57
Location: 24 Prev | Next Part: 103550 *Qty: 2 Spacer $2.47
Location: 25 Prev | Next Part: 62482600 *Qty: 1 Hose from condenser to dryer filter $510.45
Location: 26 Prev | Next Part: 62482700 *Qty: 1 Hose dryer filter-evaporator $785.41
Location: 27 Prev | Next Part: 62482800 *Qty: 1 Hose evaporator-compressor Call
Location: 28 Prev | Next Part: 62482900 *Qty: 1 Hose compressor-condenser $377.05
Location: 29 Prev | Next Part: 62462900 *Qty: 1 Hose Call
Location: 30 Prev | Next Part: 10397580 *Qty: 1 Ring $2.90
Location: 31 Prev | Next Part: 62508000 *Qty: 1 Hose valve-water pipe $664.88
Location: 32 Prev | Next Part: 13000490 *Qty: 6 Clamp Call
Location: 33 Prev | Next Part: 62508100 *Qty: 1 Hose evaporator-engine $664.88
Location: 34 Prev | Next Part: 154276 *Qty: 1 Expansion valve $321.59
Location: 35 Prev | Next Part: 62526800 *Qty: 1 Hose evaporator-valve $33.88
Location: 36 Prev | Next Part: 62618000 *Qty: 1 Speed control Call
Location: 37 Prev | Next Part: 61838600 *Qty: 1 Plate Call
Location: 38 Prev | Next Part: 142779 *Qty: 1 Potentiometer $480.80
Location: 39 Prev | Next Part: 62432900 *Qty: 1 Potentiometer plate $59.44
Location: 40 Prev | Next Part: 61112400 *Qty: 1 Fan knob -Valid for USA $109.88
Location: 40 Prev | Next Part: 61112500 *Qty: 1 Adjusting knob -Valid for USA $69.45
Location: 40 Prev | Next Part: 61808000 *Qty: 2 Knob -Not for USA- Call
Location: 41 Prev | Next Part: 61712500 *Qty: 2 Bracket $2.16
Location: 42 Prev | Next Part: 10902221 *Qty: 1 Screw $1.27
Location: 43 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 44 Prev | Next Part: 14496424 *Qty: 2 Washer Superseded
Location: 45 Prev | Next Part: 105550 *Qty: 4 Clamp $1.41
Location: 46 Prev | Next Part: 15914707 *Qty: 4 Screw $0.90
Location: 47 Prev | Next Part: 62596900 *Qty: 2 Hose $155.41
Location: 48 Prev | Next Part: 138478 *Qty: 4 Bracket $6.49
Location: 49 Prev | Next Part: 62329200 *Qty: 2 Lens to illum. A.C. plate -Valid for USA $78.84
Location: 50 Prev | Next Part: 62905000 *Qty: 1 Plate -Valid for USA $6.18
Location: 51 Prev | Next Part: 62909200 *Qty: 1 Bracket -Valid for USA $4.38

* Quantity shown indicates the number of pieces used in the diagram.
