AIR CONDITIONED COMPRESSOR

in cart

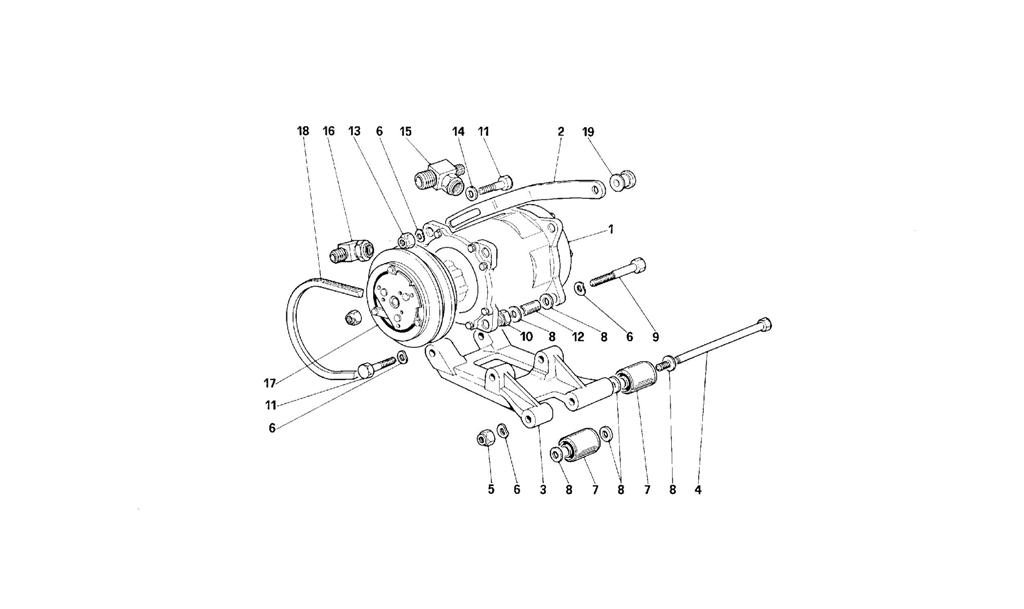

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121966 *Qty: 1 Compressor (SANKYO 507) Call
Location: 2 Prev | Next Part: 122448 *Qty: 1 Lower braket $310.83
Location: 3 Prev | Next Part: 146914 *Qty: 1 Upper mounting Call
Location: 4 Prev | Next Part: 122418 *Qty: 1 Screw $18.84
Location: 5 Prev | Next Part: 12575611 *Qty: 1 Selflocking nut Superseded
Location: 6 Prev | Next Part: 12601474 *Qty: 6 Washer $0.90
Location: 7 Prev | Next Part: 121928 *Qty: 2 Silentblock $100.52
Location: 8 Prev | Next Part: 102695 *Qty: 8 Washer $0.84
Location: 9 Prev | Next Part: 11343821 *Qty: 2 Screw $0.90
Location: 10 Prev | Next Part: 12557621 *Qty: 2 Nut Superseded
Location: 11 Prev | Next Part: 15970921 *Qty: 3 Screw $0.90
Location: 12 Prev | Next Part: 122947 *Qty: 2 Bush $60.43
Location: 13 Prev | Next Part: 12574511 *Qty: 1 Nut Superseded
Location: 14 Prev | Next Part: 14496609 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 124333 *Qty: 1 Fitting for intake $277.56
Location: 16 Prev | Next Part: 124334 *Qty: 1 Fitting for outlet $277.56
Location: 17 Prev | Next Part: 122422 *Qty: 1 Clutch-clock wise rotation $538.10
Location: 18 Prev | Next Part: 122973 *Qty: 1 Control belt for compressor $58.01
Location: 19 Prev | Next Part: 122449 *Qty: 1 Spacer $5.11

* Quantity shown indicates the number of pieces used in the diagram.
