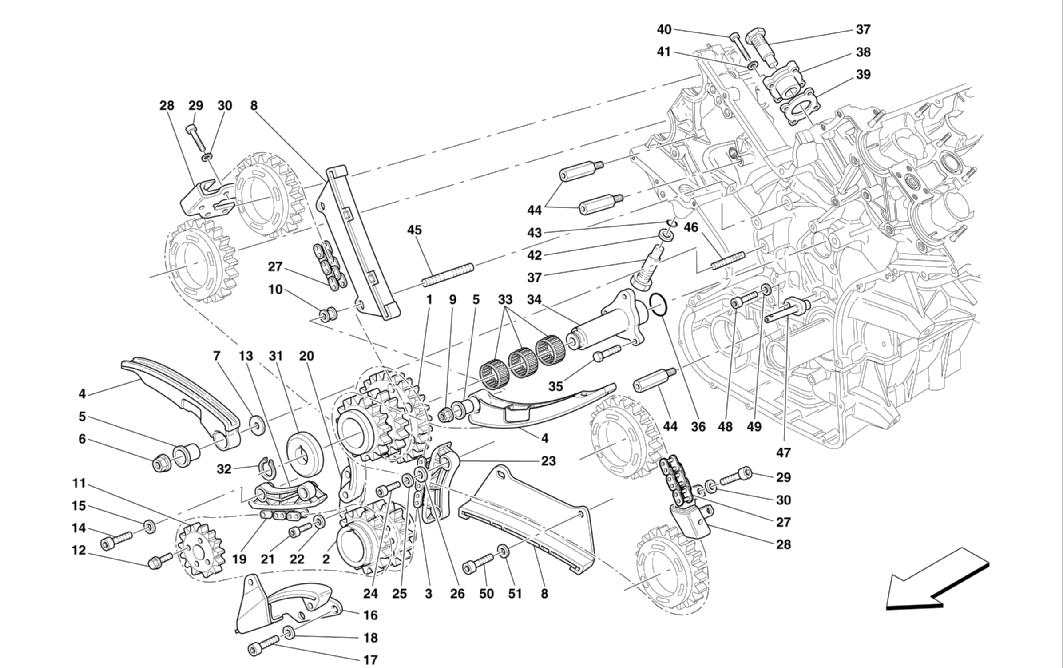

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 193528 *Qty: 1 TRANSMISSION TOOTHED WHEEL Call
Location: 2 Prev | Next Part: 186854 *Qty: 1 CRANKSHAFT TOOTHED WHEEL $151.44
Location: 3 Prev | Next Part: 175286 *Qty: 1 TRANSMISSION CHAIN $48.48
Location: 4 Prev | Next Part: 183761 *Qty: 2 MOBILE GUIDE SHOE $432.10
Location: 5 Prev | Next Part: 175303 *Qty: 2 BUSHING $13.85
Location: 6 Prev | Next Part: 177778 *Qty: 1 NUT $1.88
Location: 7 Prev | Next Part: 175306 *Qty: 1 WASHER $5.22
Location: 8 Prev | Next Part: 186185 *Qty: 2 FIXED TENSION $63.47
Location: 9 Prev | Next Part: 177778 *Qty: 1 NUT $1.88
Location: 10 Prev | Next Part: 183929 *Qty: 1 BUSHING $10.03
Location: 11 Prev | Next Part: 187656 *Qty: 1 TOOTHED WHEEL CONTROL PUMP $268.91
Location: 12 Prev | Next Part: 186668 *Qty: 4 SCREW $17.85
Location: 13 Prev | Next Part: 186186 *Qty: 1 FIXED TENSION $30.59
Location: 14 Prev | Next Part: 14305424 *Qty: 2 SCREW Superseded
Location: 15 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 16 Prev | Next Part: 192922 *Qty: 1 SUPPORT $48.01
Location: 17 Prev | Next Part: 14305624 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 19 Prev | Next Part: 175314 *Qty: 1 PUMPS CONTROL CHAIN $50.52
Location: 20 Prev | Next Part: 186159 *Qty: 1 COMPLETE SUPPORT $32.44
Location: 21 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 186181 *Qty: 1 FIXED TENSION $25.93
Location: 24 Prev | Next Part: 14432224 *Qty: 2 SCREW Superseded
Location: 25 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 26 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 193529 *Qty: 2 TIMING CONTROL CHAIN $201.54
Location: 28 Prev | Next Part: 189569 *Qty: 2 UPPER FIXED TENSION $38.11
Location: 29 Prev | Next Part: 14305934 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 11197771 *Qty: 8 WASHER Superseded
Location: 31 Prev | Next Part: 190134 *Qty: 1 SHOULDER Call
Location: 32 Prev | Next Part: 11066876 *Qty: 1 SEEGER RING $0.90
Location: 33 Prev | Next Part: 187742 *Qty: 3 ROLLER CAGE $13.36
Location: 34 Prev | Next Part: 190133 *Qty: 1 TRANSMISSION SUPPORT $709.02
Location: 35 Prev | Next Part: 181336 *Qty: 3 SCREW $2.26
Location: 36 Prev | Next Part: 148225 *Qty: 1 O.R. GASKET $0.90
Location: 37 Prev | Next Part: 180316 *Qty: 2 HYDRAULIC TIGHTENER $122.04
Location: 38 Prev | Next Part: 190060 *Qty: 1 BUSH FOR TIGHTENER $44.52
Location: 39 Prev | Next Part: 185854 *Qty: 1 GASKET $3.76
Location: 40 Prev | Next Part: 14432224 *Qty: 4 SCREW Superseded
Location: 41 Prev | Next Part: 11197771 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 190171 *Qty: 1 SPACER $8.27
Location: 43 Prev | Next Part: 192069 *Qty: 1 O.R. GASKET $0.90
Location: 44 Prev | Next Part: 175410 *Qty: 3 STUD $8.52
Location: 45 Prev | Next Part: 13543824 *Qty: 1 STUD Superseded
Location: 46 Prev | Next Part: 13543124 *Qty: 1 STUD $1.02
Location: 47 Prev | Next Part: 187818 *Qty: 1 JET $101.60
Location: 48 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 49 Prev | Next Part: 11197771 *Qty: 1 WASHER Superseded
Location: 50 Prev | Next Part: 14306224 *Qty: 3 SCREW $0.90
Location: 51 Prev | Next Part: 11193874 *Qty: 3 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
