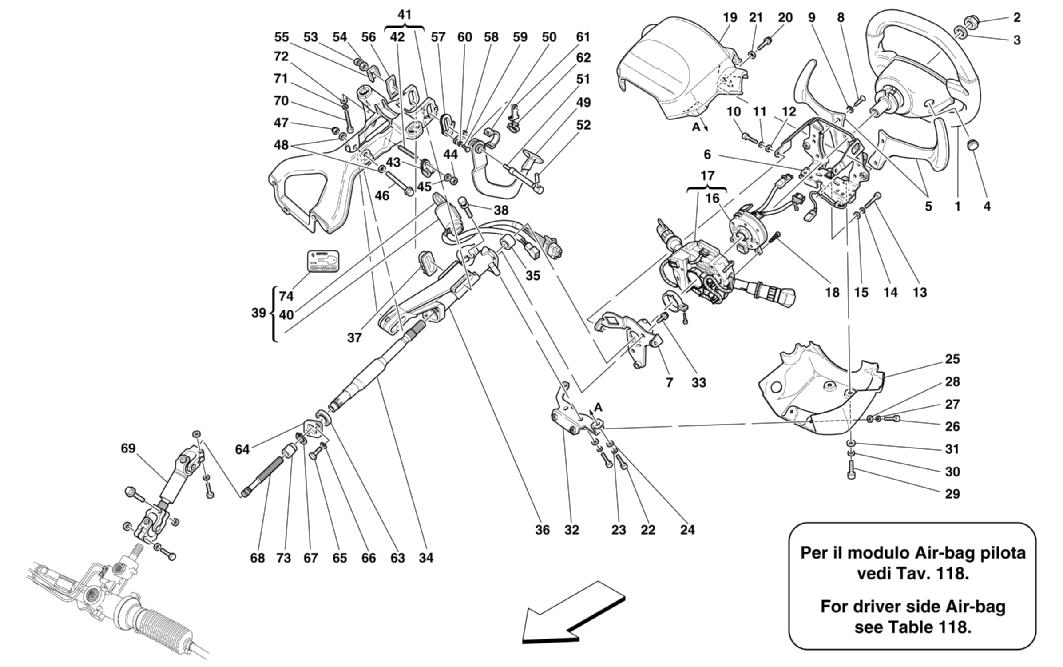

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 675560C1 *Qty: 0 Call
Location: 1 Prev | Next Part: 67556000 *Qty: 0 ENZO STEERING WHEEL Call
Location: 1 Prev | Next Part: 67556030 *Qty: 0 COMPLETE AIR-BAG STEERING WHEEL (Color Code 30) Call
Location: 2 Prev | Next Part: 101648 *Qty: 1 NUT $4.15
Location: 3 Prev | Next Part: 10730921 *Qty: 1 WASHER $0.90
Location: 4 Prev | Next Part: 185486 *Qty: 1 PLUG $4.71
Location: 5 Prev | Next Part: 197873 *Qty: 1 COUPLE LEVERS Call
Location: 6 Prev | Next Part: 190534 *Qty: 1 GEAR BOX CONTROL BRACKET Call
Location: 7 Prev | Next Part: 190533 *Qty: 1 BRACKET Call
Location: 8 Prev | Next Part: 13308977 *Qty: 4 SCREW Call
Location: 9 Prev | Next Part: 12606673 *Qty: 4 WASHER Call
Location: 10 Prev | Next Part: 14304187 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 12620377 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 14304521 *Qty: 1 SCREW Call
Location: 14 Prev | Next Part: 12637878 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 12638124 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 194665 *Qty: 1 SPIRAL CONTACT $497.20
Location: 17 Prev | Next Part: 185462 *Qty: 1 UNHOOK DEVIATION ASSEMBLY $2,843.76
Location: 18 Prev | Next Part: 13271914 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 66576700 *Qty: 1 UPPER COLUMN COVER $2,029.40
Location: 20 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 21 Prev | Next Part: 12644478 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 14304187 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 12620377 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 66576800 *Qty: 1 LOWER COLUMN COVER $2,029.40
Location: 26 Prev | Next Part: 14304187 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 12620377 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 14305287 *Qty: 2 SCREW Call
Location: 30 Prev | Next Part: 12644477 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 12620477 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 67041000 *Qty: 1 COLUMN COVER FIXING BRACKET Call
Location: 33 Prev | Next Part: 14440634 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 183994 *Qty: 1 UPPER SHAFT FOR STEERING CONTROL $1,276.88
Location: 35 Prev | Next Part: 171539 *Qty: 1 ROLLER BEARING $128.74
Location: 36 Prev | Next Part: 171516 *Qty: 1 COLUMN SUPPORT $116.93
Location: 37 Prev | Next Part: 171501 *Qty: 1 FIXED TENSION SLIDE $111.92
Location: 38 Prev | Next Part: 172563 *Qty: 1 ANTITHEFT FIXING SCREW $3.16
Location: 39 Prev | Next Part: 70000972 *Qty: 1 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY Call
Location: 40 Prev | Next Part: 198026 *Qty: 0 BLANK KEY Call
Location: 41 Prev | Next Part: 171505 *Qty: 1 STEERING COLUMN SUPPORT BRACKET $2,303.79
Location: 42 Prev | Next Part: 11001024 *Qty: 1 STUD $3.25
Location: 43 Prev | Next Part: 10441490 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 44 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 45 Prev | Next Part: 13577707 *Qty: 1 WASHER $0.90
Location: 46 Prev | Next Part: 180632 *Qty: 1 SCREW $15.78
Location: 47 Prev | Next Part: 104030 *Qty: 1 NUT $0.90
Location: 48 Prev | Next Part: 12625224 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 675568C1 *Qty: 0 Call
Location: 49 Prev | Next Part: 67556800 *Qty: 0 COVERED LEVER (Color Code 00) Call
Location: 49 Prev | Next Part: 67556830 *Qty: 0 COVERED LEVER (Color Code 30) Call
Location: 50 Prev | Next Part: 171531 *Qty: 1 PIN RETAINING SPRING $51.78
Location: 51 Prev | Next Part: 171503 *Qty: 1 LEVER PIN $66.26
Location: 52 Prev | Next Part: 10336630 *Qty: 1 PIN $126.72
Location: 53 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 54 Prev | Next Part: 171542 *Qty: 1 NUT $8.75
Location: 55 Prev | Next Part: 171529 *Qty: 1 MOBILE GUIDE SHOE $127.49
Location: 56 Prev | Next Part: 171502 *Qty: 1 SPRING FOR GUIDE SHOE $63.73
Location: 57 Prev | Next Part: 171544 *Qty: 1 LEVER SIDE GUIDE SHOE $114.74
Location: 58 Prev | Next Part: 171523 *Qty: 1 PLATE $37.03
Location: 59 Prev | Next Part: 10977724 *Qty: 2 SCREW $0.90
Location: 60 Prev | Next Part: 11181574 *Qty: 2 WASHER $0.90
Location: 61 Prev | Next Part: 177977 *Qty: 1 SMALL PLATE $22.50
Location: 62 Prev | Next Part: 178430 *Qty: 1 FIXING CLIP $0.90
Location: 63 Prev | Next Part: 171540 *Qty: 1 BALL BEARING $31.11
Location: 64 Prev | Next Part: 177645 *Qty: 1 PLATE $108.39
Location: 65 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 66 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 67 Prev | Next Part: 11067376 *Qty: 1 SEEGER RING $2.20
Location: 68 Prev | Next Part: 186930 *Qty: 1 COLUMN LOWER SHAFT $660.34
Location: 69 Prev | Next Part: 186916 *Qty: 1 STEERING CARDANIC TRASMISSION $1,848.90
Location: 70 Prev | Next Part: 16132721 *Qty: 2 SCREW $0.90
Location: 71 Prev | Next Part: 11193274 *Qty: 2 WASHER $0.90
Location: 72 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 73 Prev | Next Part: 183995 *Qty: 1 RING NUT $65.79
Location: 74 Prev | Next Part: 153603 *Qty: 1 CODE CARD Call

* Quantity shown indicates the number of pieces used in the diagram.
