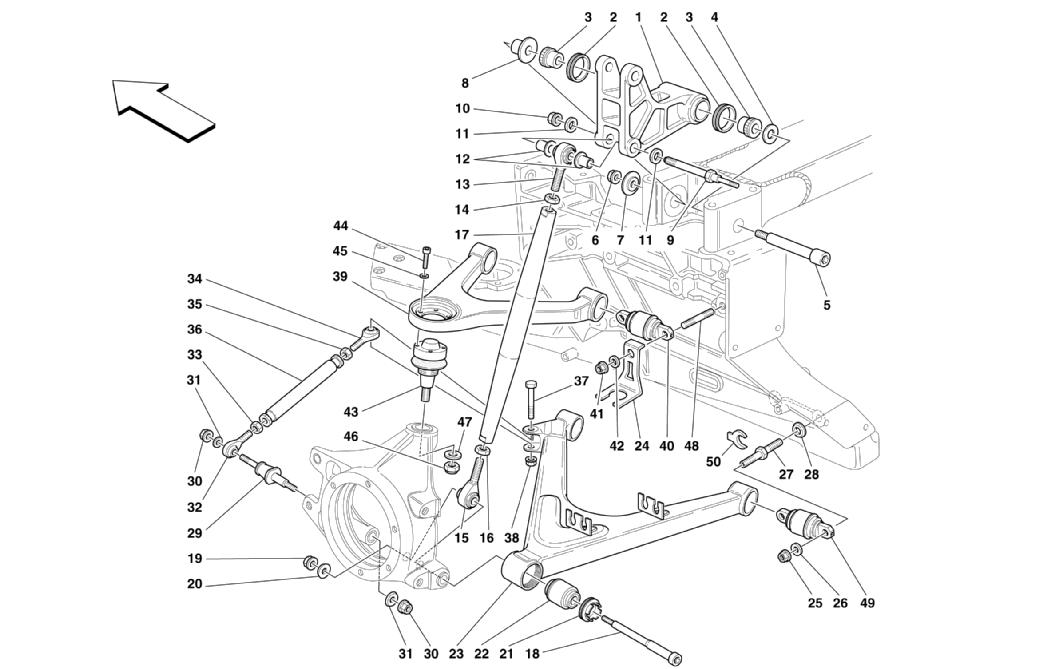

REAR SUSPENSION - WISHBONES

Go to Split View

REAR SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188391 *Qty: 1 R.H. REAR ROCKER $1,774.46
Location: 1 Prev | Next Part: 188390 *Qty: 1 L.H. REAR ROCKER $1,774.46
Location: 2 Prev | Next Part: 150153 *Qty: 4 SEAL RING $2.44
Location: 3 Prev | Next Part: 150152 *Qty: 4 ROLLER BEARING $142.56
Location: 4 Prev | Next Part: 152022 *Qty: 2 SPACER $40.25
Location: 5 Prev | Next Part: 151983 *Qty: 2 FULCRUM PIN $355.31
Location: 6 Prev | Next Part: 133216 *Qty: 2 NUT $5.61
Location: 7 Prev | Next Part: 152021 *Qty: 2 WASHER $17.47
Location: 8 Prev | Next Part: 151982 *Qty: 2 BUSHING $21.25
Location: 9 Prev | Next Part: 188393 *Qty: 2 PIN $56.21
Location: 10 Prev | Next Part: 132876 *Qty: 2 NUT $56.19
Location: 11 Prev | Next Part: 10732531 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 150082 *Qty: 4 BUSHING $456.60
Location: 13 Prev | Next Part: 149125 *Qty: 2 BALL JOINT $595.22
Location: 14 Prev | Next Part: 10717477 *Qty: 2 NUT $2.08
Location: 15 Prev | Next Part: 149126 *Qty: 2 BALL JOINT $595.22
Location: 16 Prev | Next Part: 149124 *Qty: 2 NUT $6.68
Location: 17 Prev | Next Part: 165660 *Qty: 2 REAR SHOCK ABSORBER CONTROL ROD $424.44
Location: 18 Prev | Next Part: 150141 *Qty: 2 PIN $63.03
Location: 19 Prev | Next Part: 132876 *Qty: 2 NUT $56.19
Location: 20 Prev | Next Part: 101016 *Qty: 2 WASHER $5.38
Location: 21 Prev | Next Part: 150150 *Qty: 2 RING NUT $49.37
Location: 22 Prev | Next Part: 163918 *Qty: 2 BALL JOINT $132.45
Location: 23 Prev | Next Part: 198314 *Qty: 1 L.H. REAR LOWER LEVER $2,610.26
Location: 23 Prev | Next Part: 198315 *Qty: 1 R.H. REAR LOWER LEVER $872.20
Location: 24 Prev | Next Part: 193064 *Qty: 2 ABS SENSOR FIXING BRACKET Call
Location: 25 Prev | Next Part: 133216 *Qty: 8 NUT $5.61
Location: 26 Prev | Next Part: 12638624 *Qty: 8 WASHER $0.90
Location: 27 Prev | Next Part: 149102 *Qty: 8 SCREW $28.10
Location: 28 Prev | Next Part: 149189 *Qty: 8 WASHER $4.87
Location: 29 Prev | Next Part: 161958 *Qty: 2 PIN $195.88
Location: 30 Prev | Next Part: 132876 *Qty: 4 NUT $56.19
Location: 31 Prev | Next Part: 101016 *Qty: 4 WASHER $5.38
Location: 32 Prev | Next Part: 160471 *Qty: 2 BALL JOINT $715.19
Location: 33 Prev | Next Part: 149124 *Qty: 2 NUT $6.68
Location: 34 Prev | Next Part: 160470 *Qty: 2 BALL JOINT $1,003.68
Location: 35 Prev | Next Part: 10717477 *Qty: 2 NUT $2.08
Location: 36 Prev | Next Part: 188434 *Qty: 2 SPRAG $308.48
Location: 37 Prev | Next Part: 150151 *Qty: 2 PIN $94.15
Location: 38 Prev | Next Part: 132876 *Qty: 2 NUT $56.19
Location: 39 Prev | Next Part: 193575 *Qty: 1 R.H. REAR UPPER LEVER $1,209.17
Location: 39 Prev | Next Part: 186909 *Qty: 1 L.H. REAR UPPER LEVER $1,769.46
Location: 40 Prev | Next Part: 153746 *Qty: 4 BALL JOINT $440.36
Location: 41 Prev | Next Part: 102742 *Qty: 8 NUT $0.90
Location: 42 Prev | Next Part: 102901 *Qty: 8 WASHER $0.90
Location: 43 Prev | Next Part: 130202 *Qty: 2 BALL JOINT $728.85
Location: 44 Prev | Next Part: 14305124 *Qty: 8 SCREW $0.90
Location: 45 Prev | Next Part: 10569279 *Qty: 8 WASHER $0.90
Location: 46 Prev | Next Part: 169193 *Qty: 2 NUT $2.58
Location: 47 Prev | Next Part: 150143 *Qty: 2 WASHER $31.13
Location: 48 Prev | Next Part: 189141 *Qty: 8 STUD $15.84
Location: 49 Prev | Next Part: 163703 *Qty: 4 BALL JOINT $859.44
Location: 50 Prev | Next Part: 198889 *Qty: 8 WASHER -Th. 3,0 mm. Call
Location: 50 Prev | Next Part: 197774 *Qty: 8 WASHER -Th. 0,5 mm. Call
Location: 50 Prev | Next Part: 150146 *Qty: 8 WASHER -Th. 2,0 mm. $6.08
Location: 50 Prev | Next Part: 150144 *Qty: 8 WASHER -Th. 1 mm. $5.78
Location: 50 Prev | Next Part: 150145 *Qty: 8 WASHER -Th. 1,5 mm. $6.24

* Quantity shown indicates the number of pieces used in the diagram.
