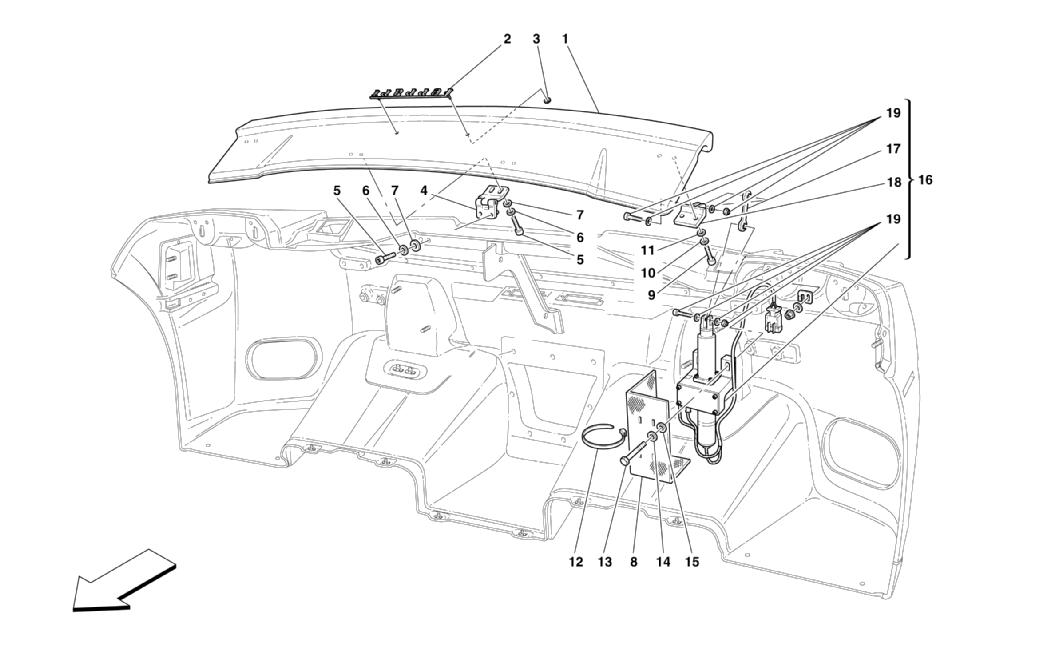

REAR MOVABLE STABILIZER

Go to Split View

REAR MOVABLE STABILIZER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66655810 *Qty: 1 REAR MOVABLE STABILIZER Call
Location: 2 Prev | Next Part: 61025000 *Qty: 1 FERRARI MARK $74.99
Location: 3 Prev | Next Part: 60324506 *Qty: 2 SAFETY CLIP Superseded
Location: 4 Prev | Next Part: 66655300 *Qty: 2 HINGE FOR SPOILER $498.97
Location: 5 Prev | Next Part: 14305224 *Qty: 8 SCREW $0.90
Location: 6 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 67380300 *Qty: 2 ACTUATOR INSULATION $68.55
Location: 9 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 145855 *Qty: 4 CLAMP $0.90
Location: 13 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 14498804 *Qty: 4 WASHER Superseded
Location: 15 Prev | Next Part: 12620474 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 66700600 *Qty: 1 L.H. STABILIZER ACTUATOR ASSEMBLY $9,680.06
Location: 16 Prev | Next Part: 66700700 *Qty: 1 R.H. STABILIZER ACTUATOR ASSEMBLY $9,680.06
Location: 17 Prev | Next Part: 67658600 *Qty: 2 SMALL LINK $370.87
Location: 18 Prev | Next Part: 67658700 *Qty: 2 STABILIZER FIXING BRACKET Call
Location: 19 Prev | Next Part: 67658500 *Qty: 4 ACTUATOR FIXING KIT Call

* Quantity shown indicates the number of pieces used in the diagram.
