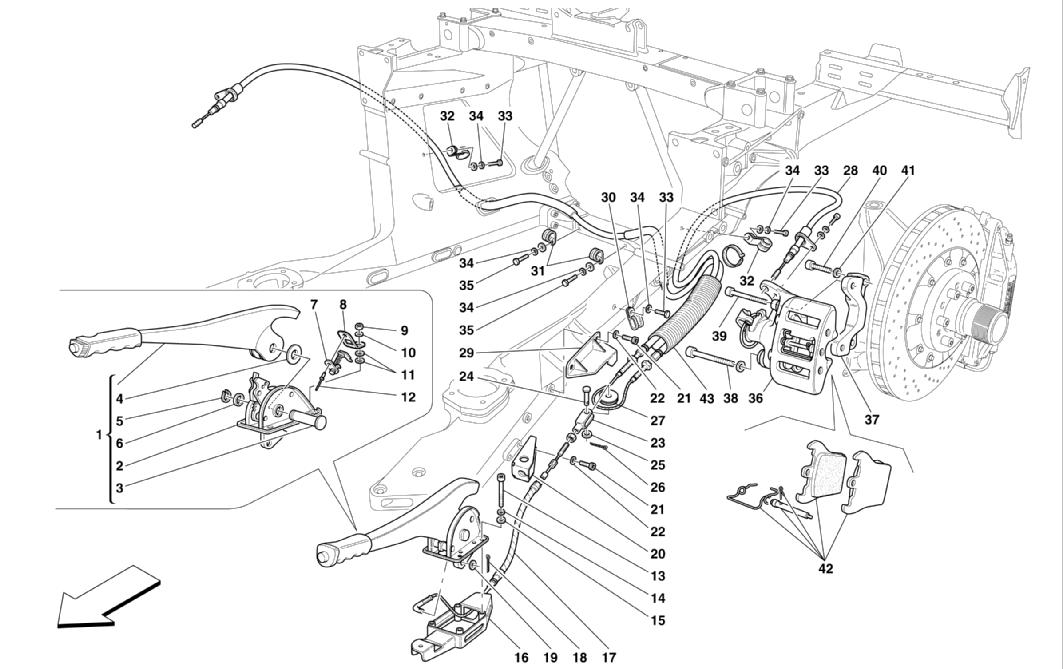

HAND-BRAKE CONTROL AND CALIPER

Go to Split View

HAND-BRAKE CONTROL AND CALIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 629965C1 *Qty: 0 Description not available Call
Location: 1 Prev | Next Part: 62996530 *Qty: 0 Description not available Call
Location: 1 Prev | Next Part: 62996500 *Qty: 0 BLACK COVER $424.70
Location: 1 Prev | Next Part: 154095 *Qty: 1 HAND BRAKE LEVER -Without lining Superseded
Location: 2 Prev | Next Part: 191634 *Qty: 1 COMPLETE MECHANISM $252.06
Location: 3 Prev | Next Part: 191635 *Qty: 1 PIN $31.93
Location: 4 Prev | Next Part: 191636 *Qty: 1 WASHER $18.03
Location: 5 Prev | Next Part: 191638 *Qty: 1 SEEGER RING $0.90
Location: 6 Prev | Next Part: 191637 *Qty: 1 SPACER WASHER $0.90
Location: 7 Prev | Next Part: 169292 *Qty: 1 SWITCH $2.25
Location: 8 Prev | Next Part: 169291 *Qty: 1 SUPPORT BRACKET $1.84
Location: 9 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 12605274 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 63622400 *Qty: 2 WASHER $10.71
Location: 12 Prev | Next Part: 50084409 *Qty: 1 RIVET $0.90
Location: 13 Prev | Next Part: 14304824 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 67354000 *Qty: 1 LEVER SUPPORT Call
Location: 17 Prev | Next Part: 191974 *Qty: 1 HAND-BRAKE CONTROL FRONT CABLE Call
Location: 18 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 19 Prev | Next Part: 13550301 *Qty: 1 WASHER $0.90
Location: 20 Prev | Next Part: 192894 *Qty: 1 CABLE FIXING BRACKET $75.13
Location: 21 Prev | Next Part: 14306374 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 10248271 *Qty: 1 FORK $18.58
Location: 24 Prev | Next Part: 10050814 *Qty: 1 PIN $3.29
Location: 25 Prev | Next Part: 13550301 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 27 Prev | Next Part: 122091 *Qty: 1 PULLEY FOR CABLE $9.47
Location: 28 Prev | Next Part: 194962 *Qty: 1 HAND-BRAKE CONTROL REAR CABLE $299.80
Location: 29 Prev | Next Part: 192395 *Qty: 1 BRACKET FOR TIGHTENER FIXING Call
Location: 30 Prev | Next Part: 10441890 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 31 Prev | Next Part: 181245 *Qty: 2 BRACKET WITH SHEATH $6.98
Location: 32 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 33 Prev | Next Part: 10902024 *Qty: 3 SCREW $0.90
Location: 34 Prev | Next Part: 12601274 *Qty: 5 WASHER $0.90
Location: 35 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 196140 *Qty: 1 L.H. CALIPER FOR HAND BRAKE Call
Location: 36 Prev | Next Part: 196139 *Qty: 1 R.H. CALIPER FOR HAND BRAKE Call
Location: 37 Prev | Next Part: 194960 *Qty: 1 L.H. BRACKET Call
Location: 37 Prev | Next Part: 194961 *Qty: 1 R.H. BRACKET Call
Location: 38 Prev | Next Part: 14308424 *Qty: 2 SCREW $3.90
Location: 39 Prev | Next Part: 14308924 *Qty: 2 SCREW $5.17
Location: 40 Prev | Next Part: 195556 *Qty: 4 SCREW Call
Location: 41 Prev | Next Part: 12604574 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 70000969 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING Call
Location: 43 Prev | Next Part: 195878 *Qty: 1 PROTECTION PIPE $130.80

* Quantity shown indicates the number of pieces used in the diagram.
