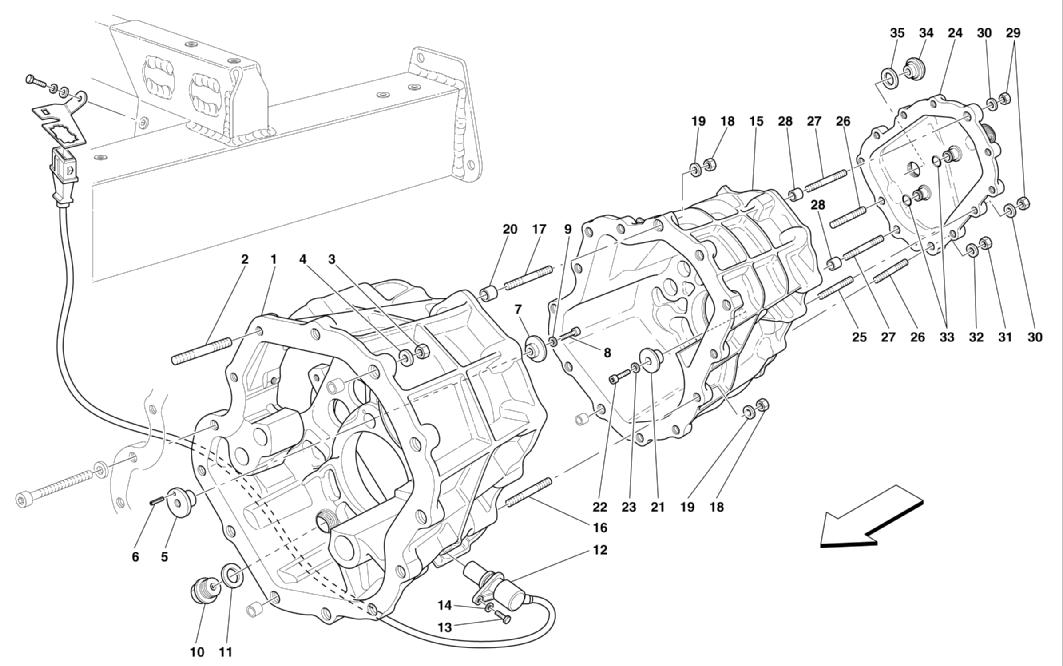

GEARBOX - REAR PART GEARBOXES HOUSING AND COVER

Go to Split View

GEARBOX - REAR PART GEARBOXES HOUSING AND COVER

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 194234 *Qty: 1 COMPLETE GEARBOX ASSEMBLY $5,243.98
Location: 1 Prev | Next Part: 185744 *Qty: 1 GEAR BOX 3rd ELEMENT -With the complete gearbox 194234 Call
Location: 2 Prev | Next Part: 13543524 *Qty: 3 STUD $0.96
Location: 3 Prev | Next Part: 16100812 *Qty: 12 NUT $0.90
Location: 4 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 5 Prev | Next Part: 157009 *Qty: 1 BUSHING $9.06
Location: 6 Prev | Next Part: 14159470 *Qty: 1 FLEXIBLE PIN $6.84
Location: 7 Prev | Next Part: 157010 *Qty: 1 BUSHING $10.78
Location: 8 Prev | Next Part: 14305731 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 10569274 *Qty: 1 WASHER Superseded
Location: 10 Prev | Next Part: 10305111 *Qty: 1 THREADED PLUG $8.63
Location: 11 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 12 Prev | Next Part: 168729 *Qty: 1 ELECTRO-MAGNETIC SENSOR $275.84
Location: 13 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 14 Prev | Next Part: 11194377 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 185743 *Qty: 1 GEAR BOX 2rd ELEMENT -With the complete gearbox 194234 Call
Location: 16 Prev | Next Part: 13543524 *Qty: 11 STUD $0.96
Location: 17 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 18 Prev | Next Part: 16100812 *Qty: 13 NUT $0.90
Location: 19 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 20 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 21 Prev | Next Part: 131757 *Qty: 1 BUSHING $14.33
Location: 22 Prev | Next Part: 14305731 *Qty: 1 SCREW $0.90
Location: 23 Prev | Next Part: 10569274 *Qty: 1 WASHER Superseded
Location: 24 Prev | Next Part: 185372 *Qty: 1 REAR COVER Call
Location: 25 Prev | Next Part: 13543624 *Qty: 8 STUD $0.90
Location: 26 Prev | Next Part: 13546524 *Qty: 2 STUD Superseded
Location: 27 Prev | Next Part: 13543724 *Qty: 2 STUD $0.90
Location: 28 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 29 Prev | Next Part: 16100812 *Qty: 10 NUT $0.90
Location: 30 Prev | Next Part: 12601374 *Qty: 10 WASHER $0.90
Location: 31 Prev | Next Part: 12164712 *Qty: 2 NUT Call
Location: 32 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 137192 *Qty: 2 O.R. GASKET $0.90
Location: 34 Prev | Next Part: 10305111 *Qty: 1 THREADED PLUG $8.63
Location: 35 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded

* Quantity shown indicates the number of pieces used in the diagram.
