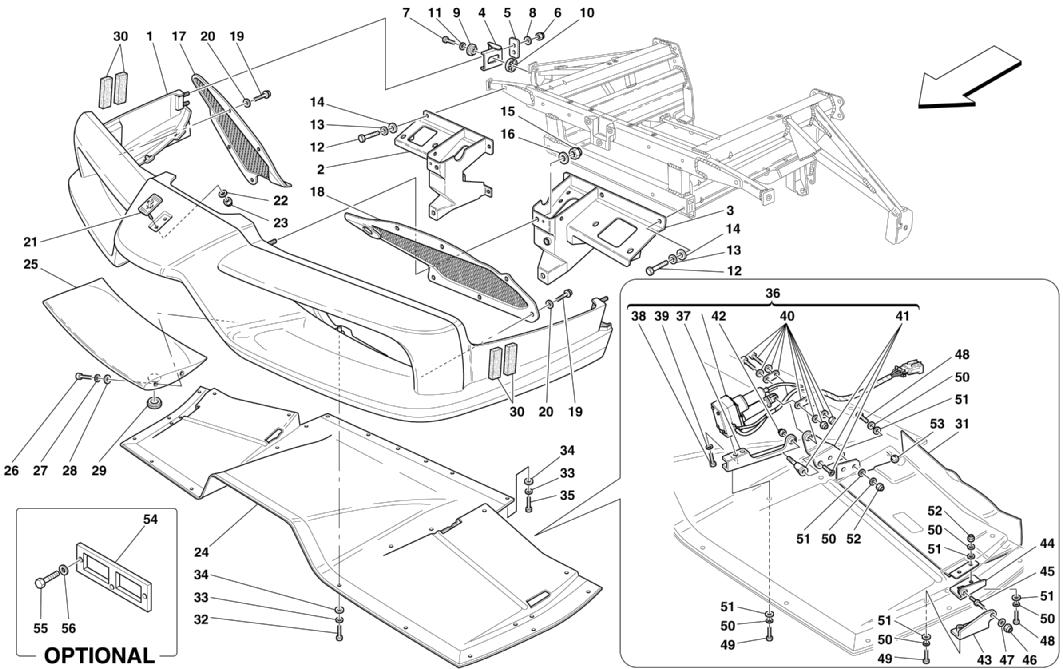

FRONT BUMPER AND FLAT FLOOR PAN

Go to Split View

FRONT BUMPER AND FLAT FLOOR PAN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66530410 *Qty: 1 COMPLETE FRONT BUMPER $27,063.34
Location: 2 Prev | Next Part: 66719600 *Qty: 1 R.H. BRACKET SUPPORTING BUMPER $1,623.65
Location: 3 Prev | Next Part: 66719700 *Qty: 1 L.H. BRACKET SUPPORTING BUMPER $1,854.05
Location: 4 Prev | Next Part: 62973000 *Qty: 2 FIXED BRACKET FOR BUMPER $32.31
Location: 5 Prev | Next Part: 62126600 *Qty: 2 PLATE $2.26
Location: 6 Prev | Next Part: 12574521 *Qty: 4 NUT $0.90
Location: 7 Prev | Next Part: 11307024 *Qty: 2 SCREW $1.25
Location: 8 Prev | Next Part: 12646824 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 62128200 *Qty: 2 EXTERNAL SMALL BLOCK $2.33
Location: 10 Prev | Next Part: 62128300 *Qty: 2 INTERNAL SMALL BLOCK $1.47
Location: 11 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 16043524 *Qty: 2 SCREW -M8x22 $0.90
Location: 12 Prev | Next Part: 16043624 *Qty: 8 SCREW -M8x25 $0.90
Location: 13 Prev | Next Part: 12625204 *Qty: 10 WASHER $0.90
Location: 14 Prev | Next Part: 12602474 *Qty: 10 WASHER $0.90
Location: 15 Prev | Next Part: 13046311 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 67418200 *Qty: 4 THICKNESS $17.67
Location: 17 Prev | Next Part: 66924800 *Qty: 1 BUMPER R.H. GRILL $582.12
Location: 18 Prev | Next Part: 66924900 *Qty: 1 BUMPER L.H. GRILL $582.12
Location: 19 Prev | Next Part: 65366700 *Qty: 14 SCREW $1.26
Location: 20 Prev | Next Part: 166467 *Qty: 14 WASHER $1.22
Location: 21 Prev | Next Part: 65394800 *Qty: 1 FRONT ORNAMENT $230.33
Location: 22 Prev | Next Part: 12638177 *Qty: 1 WASHER Superseded
Location: 23 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 66530600 *Qty: 1 FRONT UNDER THE BODY SHELL SHIELD $9,796.72
Location: 25 Prev | Next Part: 66761000 *Qty: 1 FIXED STABILIZER BUMPER $4,819.28
Location: 26 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 67254300 *Qty: 4 PLUG $1.34
Location: 30 Prev | Next Part: 158346 *Qty: 4 RUBBER THICKNESS $1.76
Location: 31 Prev | Next Part: 66700100 *Qty: 1 R.H. MOVABLE STABILIZER $3,382.43
Location: 31 Prev | Next Part: 66700000 *Qty: 1 L.H. MOVABLE STABILIZER $3,382.43
Location: 32 Prev | Next Part: 10902224 *Qty: 16 SCREW $0.90
Location: 33 Prev | Next Part: 12620474 *Qty: 18 WASHER $0.90
Location: 34 Prev | Next Part: 14498804 *Qty: 18 WASHER Superseded
Location: 35 Prev | Next Part: 14742024 *Qty: 2 SCREW $2.37
Location: 36 Prev | Next Part: 66700500 *Qty: 1 R.H. STABILIZER ACTUATOR ASSEMBLY $9,061.70
Location: 36 Prev | Next Part: 66700400 *Qty: 1 L.H. STABILIZER ACTUATOR ASSEMBLY $9,061.70
Location: 37 Prev | Next Part: 67657100 *Qty: 1 R.H. FIXED BRACKET Call
Location: 37 Prev | Next Part: 67657200 *Qty: 1 L.H. FIXED BRACKET $247.86
Location: 38 Prev | Next Part: 67657400 *Qty: 4 SCREW $0.90
Location: 39 Prev | Next Part: 67657300 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 67657000 *Qty: 2 ACTUATOR FIXING KIT Call
Location: 41 Prev | Next Part: 67657500 *Qty: 1 R.H. MOVABLE BRACKET $228.80
Location: 41 Prev | Next Part: 67657600 *Qty: 1 L.H. MOVABLE BRACKET $228.80
Location: 42 Prev | Next Part: 67657700 *Qty: 2 NUT $1.02
Location: 43 Prev | Next Part: 67657800 *Qty: 1 R.H. FIXED COUNTER BRACKET $43.80
Location: 43 Prev | Next Part: 67657900 *Qty: 1 L.H. FIXED COUNTER BRACKET $43.80
Location: 44 Prev | Next Part: 67658100 *Qty: 1 R.H. MOVABLE COUNTER BRACKET $85.45
Location: 44 Prev | Next Part: 67658200 *Qty: 1 L.H. MOVABLE COUNTER BRACKET $85.45
Location: 45 Prev | Next Part: 67658000 *Qty: 2 PIN $22.25
Location: 46 Prev | Next Part: 67657700 *Qty: 2 NUT $1.02
Location: 47 Prev | Next Part: 67658400 *Qty: 2 WASHER $0.90
Location: 48 Prev | Next Part: 10902224 *Qty: 8 SCREW $0.90
Location: 49 Prev | Next Part: 14742224 *Qty: 8 SCREW $4.15
Location: 50 Prev | Next Part: 12601274 *Qty: 24 WASHER $0.90
Location: 51 Prev | Next Part: 12644424 *Qty: 24 WASHER $0.90
Location: 52 Prev | Next Part: 102741 *Qty: 8 NUT $0.51
Location: 53 Prev | Next Part: 133627 *Qty: 4 PLUG $0.90
Location: 54 Prev | Next Part: 67749400 *Qty: 1 LICENCE-PLATE SUPPORT -Optional Call
Location: 55 Prev | Next Part: 14072614 *Qty: 3 SCREW -Optional $1.42
Location: 56 Prev | Next Part: 67740100 *Qty: 3 THREADED BUSHING -Optional Call

* Quantity shown indicates the number of pieces used in the diagram.
