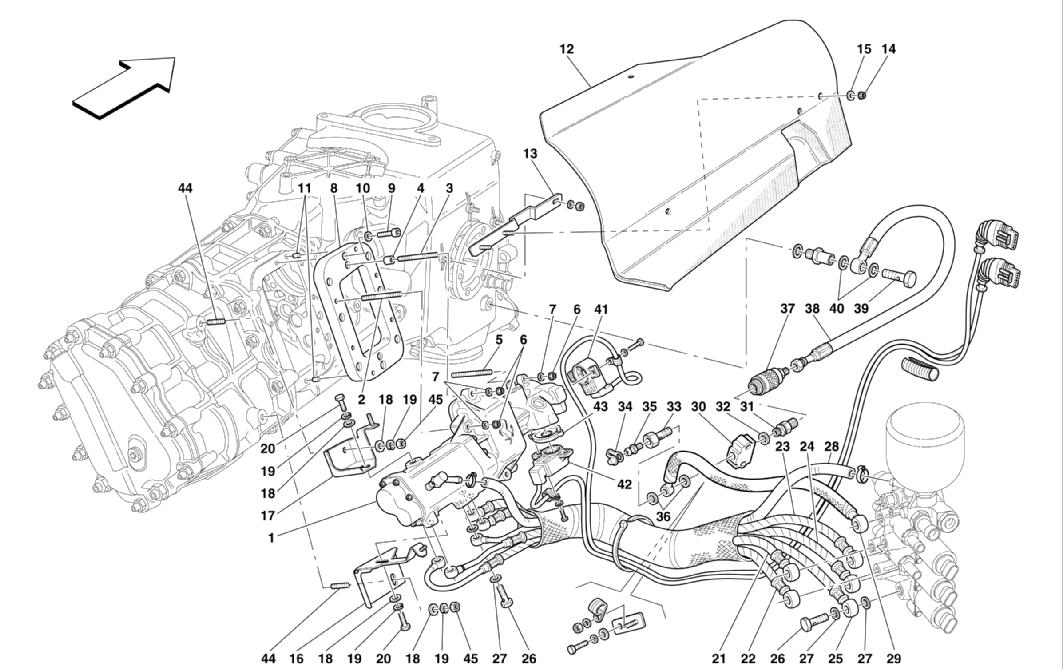

F1 CLUTCH HYDRAULIC CONTROL

Go to Split View

F1 CLUTCH HYDRAULIC CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 193477 *Qty: 1 F1 GEARBOX SYSTEM COMPONENTS KIT $22,674.31
Location: 1 Prev | Next Part: 181160 *Qty: 1 COMPLETE HYDRAULIC ACTUATOR Call
Location: 2 Prev | Next Part: 11501024 *Qty: 4 STUD $1.14
Location: 3 Prev | Next Part: 11500724 *Qty: 2 STUD $1.72
Location: 4 Prev | Next Part: 103038 *Qty: 2 CENTERING DOWEL $1.60
Location: 5 Prev | Next Part: 11500624 *Qty: 2 STUD $0.90
Location: 6 Prev | Next Part: 132877 *Qty: 8 NUT $3.78
Location: 7 Prev | Next Part: 12604274 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 189083 *Qty: 1 PLATE Call
Location: 9 Prev | Next Part: 14432224 *Qty: 8 SCREW Superseded
Location: 10 Prev | Next Part: 12648221 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 125717 *Qty: 2 CENTERING DOWEL $4.04
Location: 12 Prev | Next Part: 196181 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION $345.12
Location: 13 Prev | Next Part: 196222 *Qty: 1 SHIELD SUPPORTING BRACKET Call
Location: 14 Prev | Next Part: 160472 *Qty: 4 NUT $2.99
Location: 15 Prev | Next Part: 13577724 *Qty: 4 WASHER $2.45
Location: 16 Prev | Next Part: 195549 *Qty: 1 ACTUATOR SUPPORT LOWER BRACKET $122.24
Location: 17 Prev | Next Part: 195550 *Qty: 1 ACTUATOR SUPPORT UPPER BRACKET Call
Location: 18 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 16043124 *Qty: 2 SCREW -Till car Ass. Nr. 48494 Q.ty 4 $0.90
Location: 21 Prev | Next Part: 189767 *Qty: 1 PIPE (EV1) Call
Location: 22 Prev | Next Part: 189768 *Qty: 1 PIPE (EV2) Call
Location: 23 Prev | Next Part: 189769 *Qty: 1 PIPE (EV3) Call
Location: 24 Prev | Next Part: 189771 *Qty: 1 PIPE (EV4) Call
Location: 25 Prev | Next Part: 189772 *Qty: 1 PIPE (EV5) Call
Location: 26 Prev | Next Part: 171454 *Qty: 11 UNION $11.97
Location: 27 Prev | Next Part: 10261060 *Qty: 22 GASKET $0.90
Location: 28 Prev | Next Part: 191775 *Qty: 1 OIL RECYCLING PIPE Call
Location: 29 Prev | Next Part: 195838 *Qty: 1 PIPE FROM PUMP TO BLOCK $448.59
Location: 30 Prev | Next Part: 175667 *Qty: 1 BLOCK $42.28
Location: 31 Prev | Next Part: 70001184 *Qty: 1 MALE COUPLING Call
Location: 32 Prev | Next Part: 171755 *Qty: 1 WASHER $0.90
Location: 33 Prev | Next Part: 171630 *Qty: 1 UNION $69.05
Location: 34 Prev | Next Part: 152955 *Qty: 1 PROTECTION BOOT $7.20
Location: 35 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $7.76
Location: 36 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 70001184 *Qty: 1 FEMALE COUPLING Call
Location: 38 Prev | Next Part: 193541 *Qty: 1 CLUTCH CONTROL TUBE $748.86
Location: 39 Prev | Next Part: 171454 *Qty: 1 UNION $11.97
Location: 40 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 41 Prev | Next Part: 181325 *Qty: 1 SELECTION SENSOR $1,657.39
Location: 42 Prev | Next Part: 181325 *Qty: 1 COUPLING SENSOR $1,657.39
Location: 43 Prev | Next Part: 192911 *Qty: 1 POTENTIOMETER SUPPORT $18.30
Location: 44 Prev | Next Part: 13516424 *Qty: 2 STUD -Valid from car Ass. Nr. 48495 $0.94
Location: 45 Prev | Next Part: 16100814 *Qty: 2 NUT -Valid from car Ass. Nr. 48495 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
