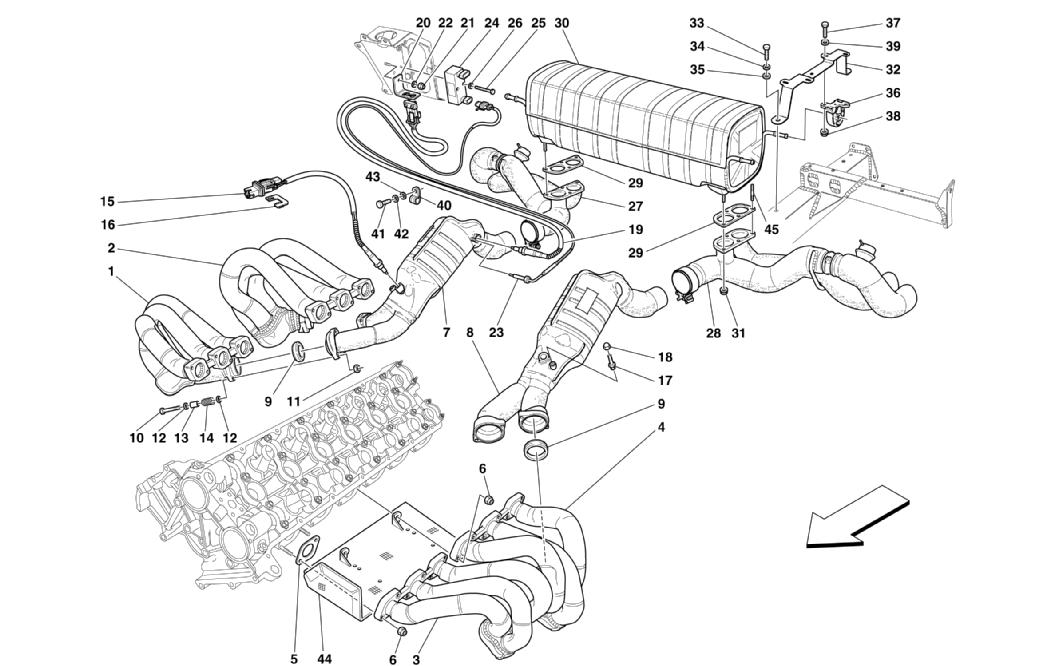

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 192662 *Qty: 1 R.H. FRONT EXHAUST MANIFOLD $5,054.95
Location: 2 Prev | Next Part: 192663 *Qty: 1 R.H. REAR EXHAUST MANIFOLD $5,054.95
Location: 3 Prev | Next Part: 192664 *Qty: 1 L.H. FRONT EXHAUST MANIFOLD $5,054.95
Location: 4 Prev | Next Part: 192665 *Qty: 1 L.H. REAR EXHAUST MANIFOLD $4,989.38
Location: 5 Prev | Next Part: 177006 *Qty: 12 GASKET $67.09
Location: 6 Prev | Next Part: 138392 *Qty: 24 NUT $1.41
Location: 7 Prev | Next Part: 191669 *Qty: 1 R.H. CATALYST $9,831.23
Location: 8 Prev | Next Part: 191670 *Qty: 1 L.H. CATALYST $9,831.23
Location: 9 Prev | Next Part: 159914 *Qty: 4 GASKET $23.83
Location: 10 Prev | Next Part: 16044834 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 138392 *Qty: 8 NUT $1.41
Location: 12 Prev | Next Part: 12646778 *Qty: 16 WASHER $0.90
Location: 13 Prev | Next Part: 114749 *Qty: 8 SPACER $1.25
Location: 14 Prev | Next Part: 111743 *Qty: 8 SPRING $16.46
Location: 15 Prev | Next Part: 182837 *Qty: 2 FRONT LAMBDA FEELER $240.00
Location: 16 Prev | Next Part: 175856 *Qty: 2 FRONT CONNECTOR FIXING BRACKET $2.37
Location: 17 Prev | Next Part: 144240 *Qty: 2 THREADED UNION $47.84
Location: 18 Prev | Next Part: 150595 *Qty: 2 CAP NUT $1.17
Location: 19 Prev | Next Part: 180915 *Qty: 2 REAR LAMBDA FEELER $175.00
Location: 20 Prev | Next Part: 178366 *Qty: 2 REAR CONNECTOR FIXING BRACKET $17.10
Location: 21 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 22 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 23 Prev | Next Part: 168824 *Qty: 2 THERMOCOUPLE Call
Location: 24 Prev | Next Part: 179278 *Qty: 2 CATALYST TEMPERATURE CONTROL STATION $299.00
Location: 25 Prev | Next Part: 15210824 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 10519224 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 191672 *Qty: 1 R.H. EXHAUST TERMINAL $3,063.29
Location: 28 Prev | Next Part: 191673 *Qty: 1 L.H. EXHAUST TERMINAL $2,266.58
Location: 29 Prev | Next Part: 177612 *Qty: 2 GASKET $27.00
Location: 30 Prev | Next Part: 191671 *Qty: 1 COMPLETE EXHAUST SILENCER $5,869.93
Location: 31 Prev | Next Part: 179808 *Qty: 8 NUT $0.90
Location: 32 Prev | Next Part: 187817 *Qty: 2 BRACKET $170.57
Location: 33 Prev | Next Part: 14305587 *Qty: 6 SCREW $0.90
Location: 34 Prev | Next Part: 11197773 *Qty: 6 WASHER Superseded
Location: 35 Prev | Next Part: 12644477 *Qty: 6 WASHER $0.90
Location: 36 Prev | Next Part: 187861 *Qty: 4 ANTI-VIBRATION SUPPORT $29.01
Location: 37 Prev | Next Part: 14306387 *Qty: 8 SCREW $1.89
Location: 38 Prev | Next Part: 175283 *Qty: 8 NUT $0.90
Location: 39 Prev | Next Part: 12638578 *Qty: 8 WASHER $0.90
Location: 40 Prev | Next Part: 10441190 *Qty: 6 BRACKET WITH SHEATH $0.90
Location: 41 Prev | Next Part: 10902224 *Qty: 6 SCREW $0.90
Location: 42 Prev | Next Part: 10519424 *Qty: 6 WASHER Call
Location: 43 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 44 Prev | Next Part: 195488 *Qty: 1 L.H. HEAT PROTECTION SHIELD Call
Location: 44 Prev | Next Part: 195487 *Qty: 1 R.H. HEAT PROTECTION SHIELD Call
Location: 45 Prev | Next Part: 188986 *Qty: 8 STUD $16.27

* Quantity shown indicates the number of pieces used in the diagram.
