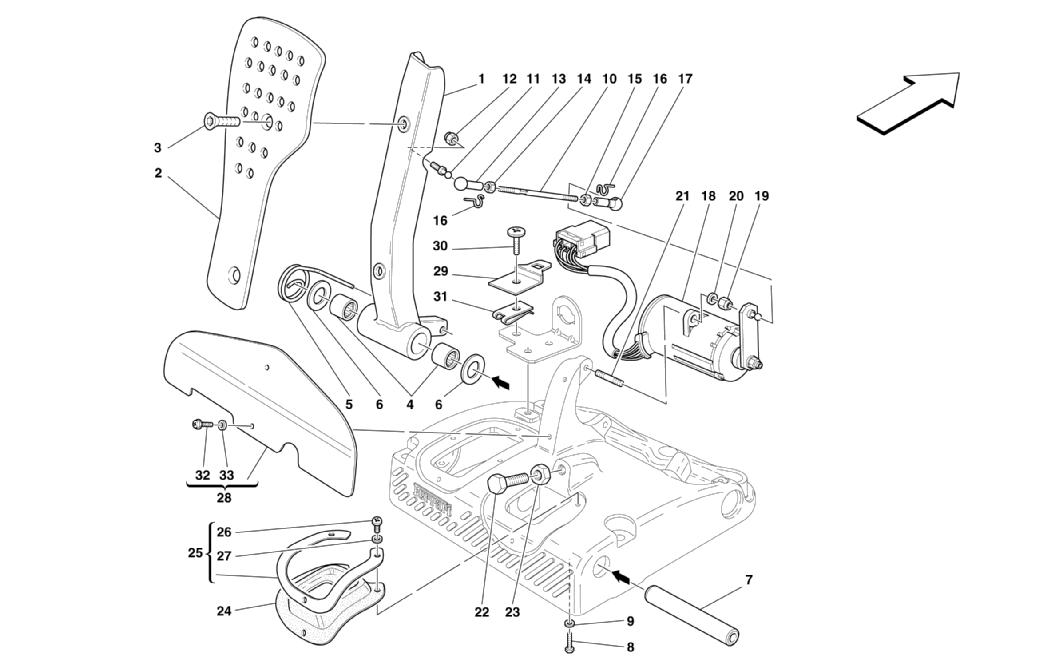

ELECTRONIC ACCELERATOR PEDAL

Go to Split View

ELECTRONIC ACCELERATOR PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186047 *Qty: 1 ACCELERATOR PEDAL $769.16
Location: 2 Prev | Next Part: 193708 *Qty: 1 ACCELERATOR PEDAL COVER -As an alternative $205.15
Location: 2 Prev | Next Part: 192618 *Qty: 1 ACCELERATOR PEDAL COVER $205.15
Location: 3 Prev | Next Part: 14441424 *Qty: 2 SCREW $2.51
Location: 4 Prev | Next Part: 101677 *Qty: 2 ROLLER BEARING $2.43
Location: 5 Prev | Next Part: 175351 *Qty: 1 SPRING $4.77
Location: 6 Prev | Next Part: 157115 *Qty: 2 SPACER WASHER $0.90
Location: 7 Prev | Next Part: 171468 *Qty: 1 ROLLER CAGE RACE $5.86
Location: 8 Prev | Next Part: 10977724 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 11181574 *Qty: 1 WASHER $0.90
Location: 10 Prev | Next Part: 171466 *Qty: 1 PUSH ROD $5.21
Location: 11 Prev | Next Part: 15151911 *Qty: 1 JOINT PIN $6.58
Location: 12 Prev | Next Part: 169180 *Qty: 1 NYLON NUT $0.90
Location: 13 Prev | Next Part: 173999 *Qty: 1 BALL JOINT HEAD $8.40
Location: 14 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 15 Prev | Next Part: 105586 *Qty: 1 NUT $5.54
Location: 16 Prev | Next Part: 174001 *Qty: 2 CLIP $0.90
Location: 17 Prev | Next Part: 174000 *Qty: 1 BALL JOINT HEAD $8.32
Location: 18 Prev | Next Part: 170038 *Qty: 1 ACCELERATOR PEDAL POTENTIOMETER $463.56
Location: 19 Prev | Next Part: 102948 *Qty: 2 NYLON NUT $0.90
Location: 20 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 13586124 *Qty: 2 STUD $64.37
Location: 22 Prev | Next Part: 16043624 *Qty: 1 SCREW $0.90
Location: 23 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 186802 *Qty: 1 ACCLERATOR PEDAL BELLOWS $143.96
Location: 25 Prev | Next Part: 186800 *Qty: 1 PLATE $85.80
Location: 26 Prev | Next Part: 13271872 *Qty: 3 SCREW $0.90
Location: 27 Prev | Next Part: 12601074 *Qty: 3 WASHER $0.90
Location: 28 Prev | Next Part: 193121 *Qty: 1 AESTHETIC SHIELD $119.54
Location: 29 Prev | Next Part: 170925 *Qty: 1 CONNECTOR FIXING BRACKET $4.45
Location: 30 Prev | Next Part: 14063314 *Qty: 1 SCREW $0.90
Location: 31 Prev | Next Part: 14371274 *Qty: 1 BRACKET $1.55
Location: 32 Prev | Next Part: 13271872 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 12601074 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
