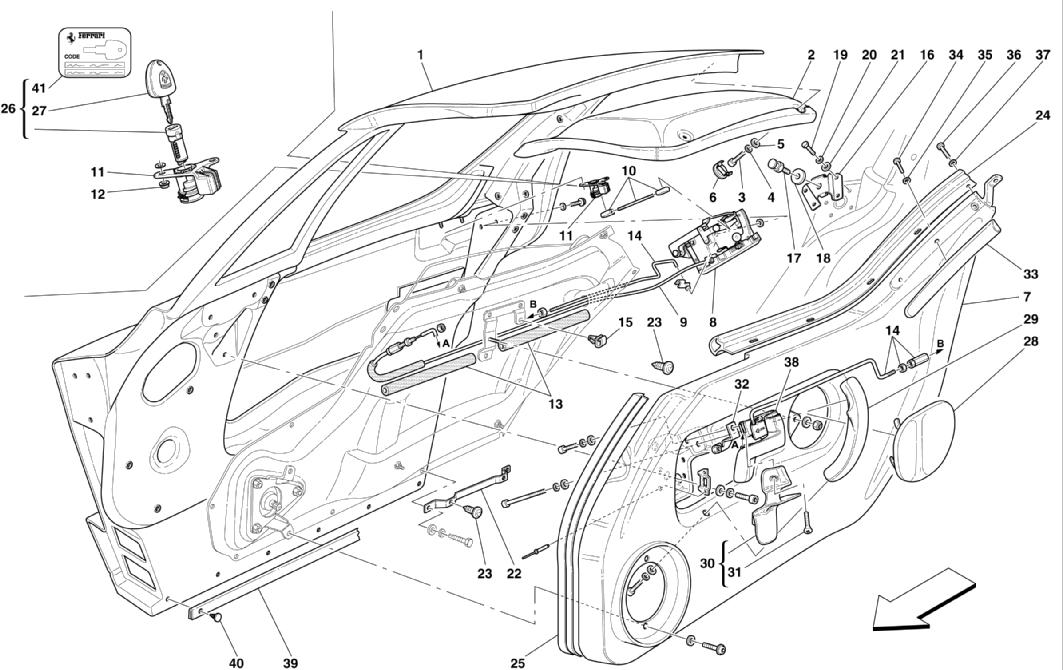

DOORS - OPENING CONTROL, FRAMEWORK AND COVERINGS

Go to Split View

DOORS - OPENING CONTROL, FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66563800 *Qty: 1 R.H. DOOR FRAME $27,097.21
Location: 1 Prev | Next Part: 66563700 *Qty: 1 L.H. DOOR FRAME $27,097.21
Location: 2 Prev | Next Part: 66765900 *Qty: 1 LINING Call
Location: 2 Prev | Next Part: 66564400 *Qty: 1 COVERED UPPER PANEL FOR L.H. DOOR $1,904.21
Location: 2 Prev | Next Part: 66766200 *Qty: 1 LINING Call
Location: 2 Prev | Next Part: 66564500 *Qty: 1 COVERED UPPER PANEL FOR R.H. DOOR $1,904.21
Location: 3 Prev | Next Part: 14305224 *Qty: 8 SCREW $0.90
Location: 4 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 67057000 *Qty: 4 COVER PLUG $31.11
Location: 7 Prev | Next Part: 66807100 *Qty: 1 COVERED LOWER PANEL FOR L.H. DOOR $5,263.02
Location: 7 Prev | Next Part: 66807000 *Qty: 1 COVERED LOWER PANEL FOR R.H. DOOR $5,263.02
Location: 8 Prev | Next Part: 66565800 *Qty: 1 R.H. DOOR LOCK $1,482.09
Location: 8 Prev | Next Part: 66565700 *Qty: 1 L.H. DOOR LOCK $1,482.09
Location: 9 Prev | Next Part: 66565900 *Qty: 2 DOOR OPENING INNER CABLE $37.01
Location: 10 Prev | Next Part: 66566000 *Qty: 1 L.H. OUTER SAFETY TIE ROD $24.67
Location: 10 Prev | Next Part: 66566100 *Qty: 1 R.H. OUTER SAFETY TIE ROD $24.67
Location: 11 Prev | Next Part: 66566300 *Qty: 1 R.H. DOOR LOCK BLOCK $150.63
Location: 11 Prev | Next Part: 66566400 *Qty: 1 L.H. DOOR LOCK BLOCK $150.63
Location: 12 Prev | Next Part: 13046011 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 67255100 *Qty: 2 PROTECTION $158.62
Location: 14 Prev | Next Part: 66566200 *Qty: 2 R.H. INNER SAFETY CABLE Call
Location: 15 Prev | Next Part: 14573280 *Qty: 2 FLEXIBLE CLIP $0.90
Location: 16 Prev | Next Part: 66754100 *Qty: 2 STRIKER SUPPORT Call
Location: 17 Prev | Next Part: 65305800 *Qty: 2 STRIKER $19.75
Location: 18 Prev | Next Part: 67206700 *Qty: 2 SPECIAL WASHER Call
Location: 19 Prev | Next Part: 10902224 *Qty: 8 SCREW $0.90
Location: 20 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 22 Prev | Next Part: 66805500 *Qty: 1 LOWER BRACKET Call
Location: 23 Prev | Next Part: 66092400 *Qty: 7 PLUG $0.90
Location: 24 Prev | Next Part: 66538800 *Qty: 1 R.H. GASKET INNER GLASS SCRAPER $268.76
Location: 24 Prev | Next Part: 66766600 *Qty: 1 L.H. GASKET INNER GLASS SCRAPER Call
Location: 25 Prev | Next Part: 67417200 *Qty: 1 R.H. DOOR PANEL GASKET Call
Location: 25 Prev | Next Part: 67421300 *Qty: 1 L.H. DOOR PANEL GASKET Call
Location: 26 Prev | Next Part: 70000972 *Qty: 1 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY Call
Location: 27 Prev | Next Part: 198026 *Qty: 0 BLANK KEY Call
Location: 28 Prev | Next Part: 66564930 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 665650C1 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 667995C1 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 665649C1 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66799600 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66799500 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66799630 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66564900 *Qty: 0 Description not available $448.19
Location: 28 Prev | Next Part: 66799530 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66565030 *Qty: 0 Description not available Call
Location: 28 Prev | Next Part: 66565000 *Qty: 0 Description not available $448.19
Location: 28 Prev | Next Part: 667996C1 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66565300 *Qty: 0 Description not available $387.57
Location: 29 Prev | Next Part: 66565430 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66565400 *Qty: 0 Description not available $387.57
Location: 29 Prev | Next Part: 66798900 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66799030 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66565330 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66798930 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 665654C1 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 667990C1 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 665653C1 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 667989C1 *Qty: 0 Description not available Call
Location: 29 Prev | Next Part: 66799000 *Qty: 0 Description not available Call
Location: 30 Prev | Next Part: 66807400 *Qty: 1 R.H. HANDLE PLATE $900.73
Location: 30 Prev | Next Part: 66807500 *Qty: 1 L.H. HANDLE PLATE $900.73
Location: 31 Prev | Next Part: 14440320 *Qty: 2 SCREW Call
Location: 32 Prev | Next Part: 66805800 *Qty: 1 R.H. BRACKET Call
Location: 32 Prev | Next Part: 66808000 *Qty: 1 L.H. BRACKET Call
Location: 33 Prev | Next Part: 66845400 *Qty: 0 L.H. HEAD SHIELD (Color Code 00) Call
Location: 33 Prev | Next Part: 66845600 *Qty: 1 LINING Call
Location: 33 Prev | Next Part: 66845300 *Qty: 0 R.H. HEAD SHIELD (Color Code 00) Call
Location: 33 Prev | Next Part: 66845430 *Qty: 0 L.H. HEAD SHIELD (Color Code 30) Call
Location: 33 Prev | Next Part: 66845330 *Qty: 0 R.H. HEAD SHIELD (Color Code 30) Call
Location: 33 Prev | Next Part: 668453C1 *Qty: 0 Call
Location: 33 Prev | Next Part: 668454C1 *Qty: 0 Call
Location: 33 Prev | Next Part: 66845500 *Qty: 1 LINING Call
Location: 34 Prev | Next Part: 65408900 *Qty: 6 SCREW $2.33
Location: 35 Prev | Next Part: 12620374 *Qty: 6 WASHER $0.90
Location: 36 Prev | Next Part: 13272011 *Qty: 10 SCREW $0.90
Location: 37 Prev | Next Part: 12642824 *Qty: 10 WASHER Call
Location: 38 Prev | Next Part: 66565200 *Qty: 1 COMPLETE R.H. INNER HANDLE FOR DOOR OPENING $951.19
Location: 38 Prev | Next Part: 66565100 *Qty: 1 COMPLETE L.H. INNER HANDLE FOR DOOR OPENING $951.19
Location: 39 Prev | Next Part: 67363100 *Qty: 1 R.H. DUST PROTECTION GASKET $174.19
Location: 39 Prev | Next Part: 67363200 *Qty: 1 L.H. DUST PROTECTION GASKET $174.19
Location: 40 Prev | Next Part: 178949 *Qty: 12 BUTTON $0.90
Location: 41 Prev | Next Part: 153603 *Qty: 1 CODE CARD Call

* Quantity shown indicates the number of pieces used in the diagram.
