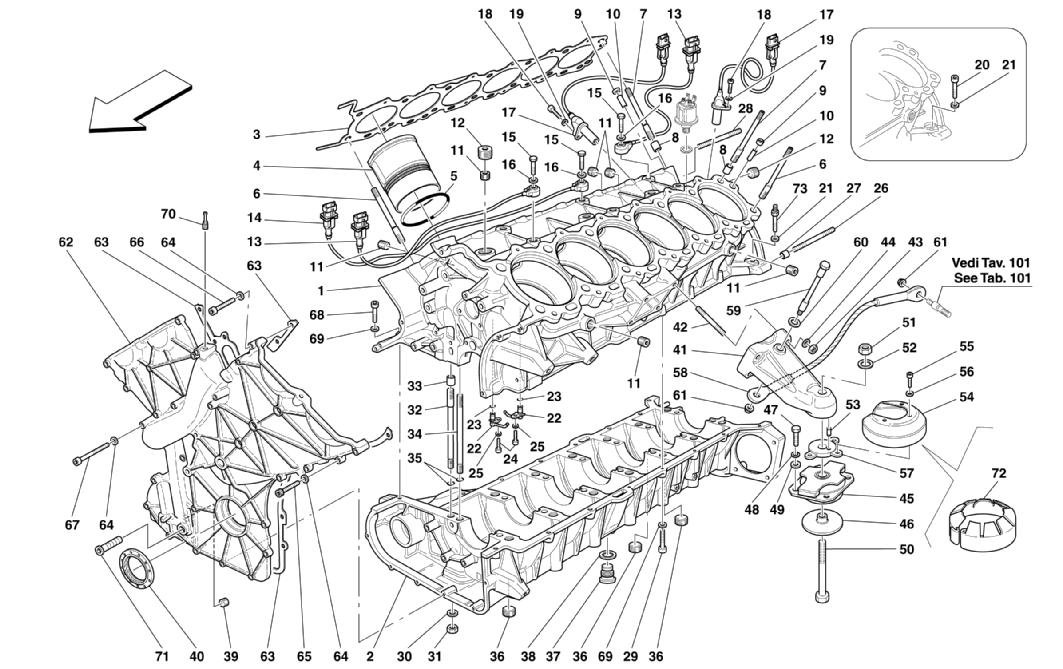

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 198048 *Qty: 0 Description not available $27,570.06
Location: 1 Prev | Next Part: 181339 *Qty: 1 ENGINE BASE-PLATE -Not as spare part -With the complete crankcase Call
Location: 2 Prev | Next Part: 186684 *Qty: 1 COMPLETE UNDERCRANKCASE -Not as spare part -With the complete crankcase Call
Location: 3 Prev | Next Part: 181832 *Qty: 1 R.H. GASKET $791.72
Location: 3 Prev | Next Part: 181833 *Qty: 1 L.H. GASKET $791.72
Location: 4 Prev | Next Part: 187806 *Qty: 12 CYLINDER LINER $1,358.30
Location: 5 Prev | Next Part: 186251 *Qty: 36 O.R. GASKET $3.11
Location: 6 Prev | Next Part: 186134 *Qty: 14 STUD $13.15
Location: 7 Prev | Next Part: 186133 *Qty: 14 STUD Call
Location: 8 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.50
Location: 9 Prev | Next Part: 195382 *Qty: 2 DOWEL $6.07
Location: 10 Prev | Next Part: 156862 *Qty: 2 NONRETURN VALVE $20.60
Location: 11 Prev | Next Part: 194490 *Qty: 7 THREADED PLUG $162.77
Location: 12 Prev | Next Part: 10269850 *Qty: 4 THREADED PLUG $2.30
Location: 13 Prev | Next Part: 182266 *Qty: 4 SENSOR FOR FIRING -L= 400 mm $69.54
Location: 14 Prev | Next Part: 181809 *Qty: 2 SENSOR FOR FIRING -L= 650 mm $52.95
Location: 15 Prev | Next Part: 16043834 *Qty: 6 SCREW $0.90
Location: 16 Prev | Next Part: 11198074 *Qty: 6 WASHER $0.90
Location: 17 Prev | Next Part: 182194 *Qty: 2 ANGOLAR SPEED SENSOR $82.30
Location: 18 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 14305824 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 22 Prev | Next Part: 182973 *Qty: 12 PISTONS COOLING NOZZLE $27.04
Location: 23 Prev | Next Part: 164877 *Qty: 12 O.R. GASKET $0.90
Location: 24 Prev | Next Part: 14302921 *Qty: 12 SCREW $0.90
Location: 25 Prev | Next Part: 11181474 *Qty: 12 WASHER $0.90
Location: 26 Prev | Next Part: 13546934 *Qty: 2 STUD $2.12
Location: 27 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $2.77
Location: 28 Prev | Next Part: 13546734 *Qty: 5 STUD $1.71
Location: 29 Prev | Next Part: 14305324 *Qty: 1 SCREW -L= 20 mm $0.90
Location: 29 Prev | Next Part: 14305424 *Qty: 12 SCREW -L= 25 mm Superseded
Location: 30 Prev | Next Part: 178348 *Qty: 28 WASHER $0.92
Location: 31 Prev | Next Part: 133988 *Qty: 28 NUT $0.90
Location: 32 Prev | Next Part: 185084 *Qty: 14 STUD $46.98
Location: 33 Prev | Next Part: 176421 *Qty: 14 CENTERING DOWEL $5.06
Location: 34 Prev | Next Part: 190426 *Qty: 14 STUD $10.72
Location: 35 Prev | Next Part: 134704 *Qty: 28 O.R. GASKET $0.90
Location: 36 Prev | Next Part: 10269850 *Qty: 3 THREADED PLUG $2.30
Location: 37 Prev | Next Part: 104280 *Qty: 1 OIL OUTLET PLUG $6.54
Location: 38 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 38 Prev | Next Part: 10263460 *Qty: 1 GASKET -Not as spare part -Replaced by 10261860 Superseded
Location: 39 Prev | Next Part: 194490 *Qty: 1 THREADED PLUG $162.77
Location: 40 Prev | Next Part: 188717 *Qty: 1 GASKET $15.95
Location: 41 Prev | Next Part: 186307 *Qty: 2 ENGINE FIXING SUPPORT $779.87
Location: 42 Prev | Next Part: 13546624 *Qty: 8 STUD $1.13
Location: 43 Prev | Next Part: 133988 *Qty: 8 NUT $0.90
Location: 44 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 45 Prev | Next Part: 190255 *Qty: 2 FLEXIBLE PAD $53.17
Location: 46 Prev | Next Part: 204086 *Qty: 2 RETAINING WASHER -Valid from engine Nr. 77490 -Replaces 182141 $53.24
Location: 46 Prev | Next Part: 182141 *Qty: 2 RETAINING WASHER -Valid till engine Nr. 77489 -Not as spare part -Replaced by 204086 $46.13
Location: 47 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 48 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 49 Prev | Next Part: 13550424 *Qty: 8 WASHER $0.90
Location: 50 Prev | Next Part: 15864334 *Qty: 2 SCREW $6.72
Location: 51 Prev | Next Part: 176573 *Qty: 2 NUT $1.32
Location: 52 Prev | Next Part: 12601774 *Qty: 2 WASHER $0.90
Location: 53 Prev | Next Part: 125716 *Qty: 2 CENTERING DOWEL $3.65
Location: 54 Prev | Next Part: 189819 *Qty: 2 SHIELD $215.40
Location: 55 Prev | Next Part: 14305024 *Qty: 6 SCREW $0.90
Location: 56 Prev | Next Part: 12604274 *Qty: 6 WASHER $0.90
Location: 57 Prev | Next Part: 188853 *Qty: 2 SPACER FOR SHIELD $129.78
Location: 58 Prev | Next Part: 201869 *Qty: 1 L.H. ENGINE HOLDING CABLE $986.08
Location: 58 Prev | Next Part: 191430 *Qty: 2 ENGINE HOLDING CABLE -Not as spare part now -Replaced by 201868 and 201869 Call
Location: 58 Prev | Next Part: 201868 *Qty: 1 R.H. ENGINE HOLDING CABLE $986.08
Location: 59 Prev | Next Part: 193849 *Qty: 2 SCREW $46.98
Location: 60 Prev | Next Part: 10523225 *Qty: 2 WASHER $5.06
Location: 61 Prev | Next Part: 133216 *Qty: 4 NUT $9.88
Location: 62 Prev | Next Part: 190486 *Qty: 1 FRONT COVER $6,290.68
Location: 63 Prev | Next Part: 190487 *Qty: 1 FRONT COVER GASKET $81.72
Location: 64 Prev | Next Part: 11197771 *Qty: 33 WASHER Superseded
Location: 65 Prev | Next Part: 14305324 *Qty: 2 SCREW -L= 20 mm $0.90
Location: 65 Prev | Next Part: 14305424 *Qty: 15 SCREW -L= 25 mm Superseded
Location: 66 Prev | Next Part: 14305624 *Qty: 6 SCREW -L= 35 mm $0.90
Location: 66 Prev | Next Part: 14305524 *Qty: 3 SCREW -L= 30 mm $0.90
Location: 67 Prev | Next Part: 14305824 *Qty: 2 SCREW -L= 40 mm $0.90
Location: 67 Prev | Next Part: 14306024 *Qty: 4 SCREW -L= 50 mm Superseded
Location: 67 Prev | Next Part: 14305924 *Qty: 1 SCREW -L= 45 mm Superseded
Location: 68 Prev | Next Part: 14305324 *Qty: 1 SCREW $0.90
Location: 69 Prev | Next Part: 11197771 *Qty: 14 WASHER Superseded
Location: 70 Prev | Next Part: 155093 *Qty: 1 THREADED UNION $19.94
Location: 71 Prev | Next Part: 158025 *Qty: 1 THREADED UNION Call
Location: 72 Prev | Next Part: 206943 *Qty: 2 HEAT SHIELD $119.62
Location: 73 Prev | Next Part: 198871 *Qty: 1 STUD Call

* Quantity shown indicates the number of pieces used in the diagram.
