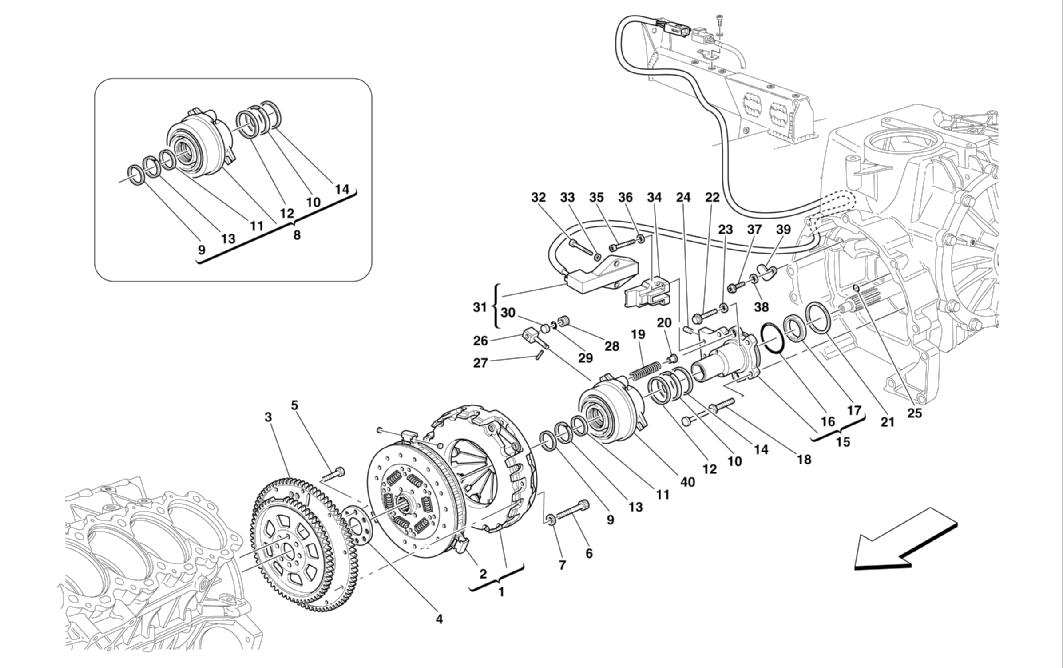

CLUTCH CONTROLS

Go to Split View

CLUTCH CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 198824 *Qty: 1 COMPLETE CLUTCH -Valid till stock exhaustion $4,842.98
Location: 2 Prev | Next Part: 198824 *Qty: 1 COMPLETE CLUTCH -Valid after stock exhaustion of 194517 $4,842.98
Location: 3 Prev | Next Part: 230426 *Qty: 1 ENGINE FLYWHEEL WITH TOOTHED WHEEL $559.35
Location: 4 Prev | Next Part: 103876 *Qty: 1 FLYWHEEL FIXING WASHER $12.92
Location: 5 Prev | Next Part: 103875 *Qty: 8 SCREW Superseded
Location: 6 Prev | Next Part: 185206 *Qty: 9 SCREW $2.89
Location: 7 Prev | Next Part: 11194377 *Qty: 9 WASHER $0.90
Location: 8 Prev | Next Part: 178331 *Qty: 1 COMPLETE THRUST BEARING -Not as spare part now Call
Location: 9 Prev | Next Part: 181837 *Qty: 1 SCRAPER RING $25.26
Location: 10 Prev | Next Part: 154507 *Qty: 1 SLIDING RING $4.16
Location: 11 Prev | Next Part: 181838 *Qty: 1 SEAL RING $23.67
Location: 12 Prev | Next Part: 181828 *Qty: 1 SEAL RING $29.51
Location: 13 Prev | Next Part: 170416 *Qty: 1 SLIDING RING $1.98
Location: 14 Prev | Next Part: 181836 *Qty: 1 SCRAPER RING $27.76
Location: 15 Prev | Next Part: 194670 *Qty: 1 FLANGE SUPPORTING BEARING $1,739.98
Location: 16 Prev | Next Part: 136140 *Qty: 1 O.R. GASKET $1.61
Location: 17 Prev | Next Part: 172363 *Qty: 1 SEAL RING $12.43
Location: 18 Prev | Next Part: 205396 *Qty: 2 STUD FOR END OF STROKE -Not as spare now -Replaced by 201322 $66.00
Location: 18 Prev | Next Part: 201322 *Qty: 2 STUD FOR END OF STROKE $65.05
Location: 19 Prev | Next Part: 155207 *Qty: 2 PRELOAD SPRING $11.47
Location: 20 Prev | Next Part: 155206 *Qty: 2 SPACER $4.04
Location: 21 Prev | Next Part: 173360 *Qty: 1 SPACER $26.43
Location: 22 Prev | Next Part: 16052024 *Qty: 2 SCREW $3.03
Location: 23 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 65928500 *Qty: 2 THREADED PLUG $21.12
Location: 25 Prev | Next Part: 166432 *Qty: 2 O.R. GASKET $0.90
Location: 26 Prev | Next Part: 165567 *Qty: 1 PIN $56.99
Location: 27 Prev | Next Part: 14158570 *Qty: 1 FLEXIBLE PIN $0.90
Location: 28 Prev | Next Part: 167802 *Qty: 1 PLUG $20.81
Location: 29 Prev | Next Part: 165658 *Qty: 1 O.R. GASKET $10.37
Location: 30 Prev | Next Part: 178060 *Qty: 1 MAGNET -Not supplied- -Included in 182311 $450.00
Location: 31 Prev | Next Part: 182311 *Qty: 1 COMPLETE SENSOR KIT -Includes sensor ref. 30 and magnet Superseded
Location: 32 Prev | Next Part: 14303324 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 201282 *Qty: 1 SUPPORT $63.96
Location: 35 Prev | Next Part: 14358524 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 10519378 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 14778114 *Qty: 1 SCREW $6.87
Location: 38 Prev | Next Part: 11188079 *Qty: 1 WASHER $0.90
Location: 39 Prev | Next Part: 194250 *Qty: 1 SMALL PLATE Call
Location: 40 Prev | Next Part: 178331 *Qty: 1 THRUST BEARING -Not as spare part -Replaced by 201024 Call
Location: 40 Prev | Next Part: 201024 *Qty: 1 THRUST BEARING $613.28

* Quantity shown indicates the number of pieces used in the diagram.
