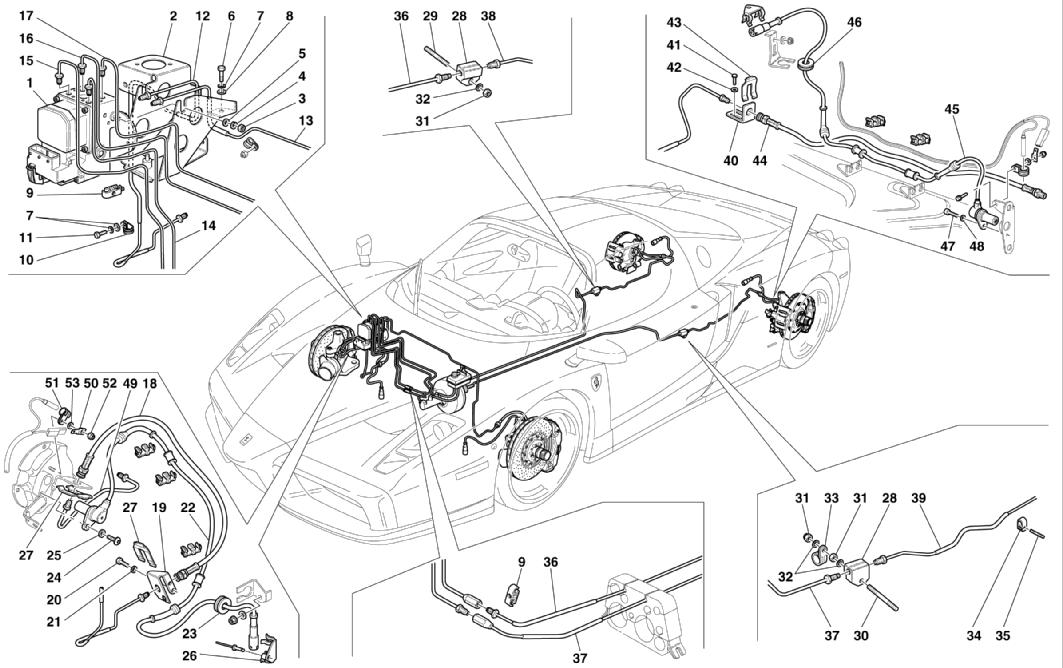

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186179 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION $2,646.36
Location: 2 Prev | Next Part: 193441 *Qty: 1 CONTROL STATION SUPPORTING BRACKET $199.80
Location: 3 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 10902424 *Qty: 3 SCREW $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 169476 *Qty: 6 CLIP $3.69
Location: 10 Prev | Next Part: 10440990 *Qty: 5 BRACKET WITH SHEATH $1.90
Location: 11 Prev | Next Part: 10902124 *Qty: 5 SCREW $0.90
Location: 12 Prev | Next Part: 196659 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. HOSE Call
Location: 13 Prev | Next Part: 196660 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. HOSE Call
Location: 14 Prev | Next Part: 190982 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. UNDER TUNNEL Call
Location: 15 Prev | Next Part: 190983 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. UNDER TUNNEL Call
Location: 16 Prev | Next Part: 188329 *Qty: 1 PIPE FROM FRONT PUMP TO CONTROL UNIT $32.39
Location: 17 Prev | Next Part: 188327 *Qty: 1 PIPE FROM REAR PUMP TO CONTROL UNIT $47.59
Location: 18 Prev | Next Part: 193465 *Qty: 2 FRONT HOSE $210.11
Location: 19 Prev | Next Part: 196602 *Qty: 1 R.H. FRONT SUPPORT Call
Location: 19 Prev | Next Part: 196601 *Qty: 1 L.H. FRONT SUPPORT Call
Location: 20 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 170592 *Qty: 2 ABS SENSOR $104.31
Location: 23 Prev | Next Part: 10396180 *Qty: 2 CABLE GROMMET $1.30
Location: 24 Prev | Next Part: 60909500 *Qty: 2 SCREW $2.74
Location: 25 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 128292 *Qty: 2 CLIP $3.16
Location: 27 Prev | Next Part: 116374 *Qty: 4 CLIP $2.97
Location: 28 Prev | Next Part: 155215 *Qty: 2 TWO-WAY UNION $38.33
Location: 29 Prev | Next Part: 13541224 *Qty: 1 STUD $0.90
Location: 30 Prev | Next Part: 13541624 *Qty: 1 STUD $0.90
Location: 31 Prev | Next Part: 10725914 *Qty: 3 NUT $0.90
Location: 32 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 33 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 34 Prev | Next Part: 169477 *Qty: 4 CLIP $2.41
Location: 35 Prev | Next Part: 11001224 *Qty: 4 STUD $1.16
Location: 36 Prev | Next Part: 188328 *Qty: 1 PIPE TO TUNNEL FROM R.H. REAR UNION Call
Location: 37 Prev | Next Part: 188332 *Qty: 1 PIPE TO TUNNEL FROM L.H. REAR UNION Call
Location: 38 Prev | Next Part: 188333 *Qty: 1 PIPE FROM UNION TO R.H. REAR HOSE Call
Location: 39 Prev | Next Part: 188334 *Qty: 1 PIPE FROM UNION TO L.H. REAR HOSE Call
Location: 40 Prev | Next Part: 194440 *Qty: 2 REAR SUPPORT Call
Location: 41 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 42 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 43 Prev | Next Part: 116374 *Qty: 2 CLIP $2.97
Location: 44 Prev | Next Part: 193466 *Qty: 2 REAR HOSE $207.73
Location: 45 Prev | Next Part: 170592 *Qty: 2 ABS SENSOR $104.31
Location: 46 Prev | Next Part: 10396180 *Qty: 2 CABLE GROMMET $1.30
Location: 47 Prev | Next Part: 60909500 *Qty: 2 SCREW $2.74
Location: 48 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 193295 *Qty: 1 PIPE FROM FRONT HOSE TO R.H. CALIPER Call
Location: 49 Prev | Next Part: 193296 *Qty: 1 PIPE FROM FRONT HOSE TO L.H. CALIPER Call
Location: 50 Prev | Next Part: 143405 *Qty: 2 FASTON $0.90
Location: 51 Prev | Next Part: 10440990 *Qty: 2 CLIP $1.90
Location: 52 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 53 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.01

* Quantity shown indicates the number of pieces used in the diagram.
